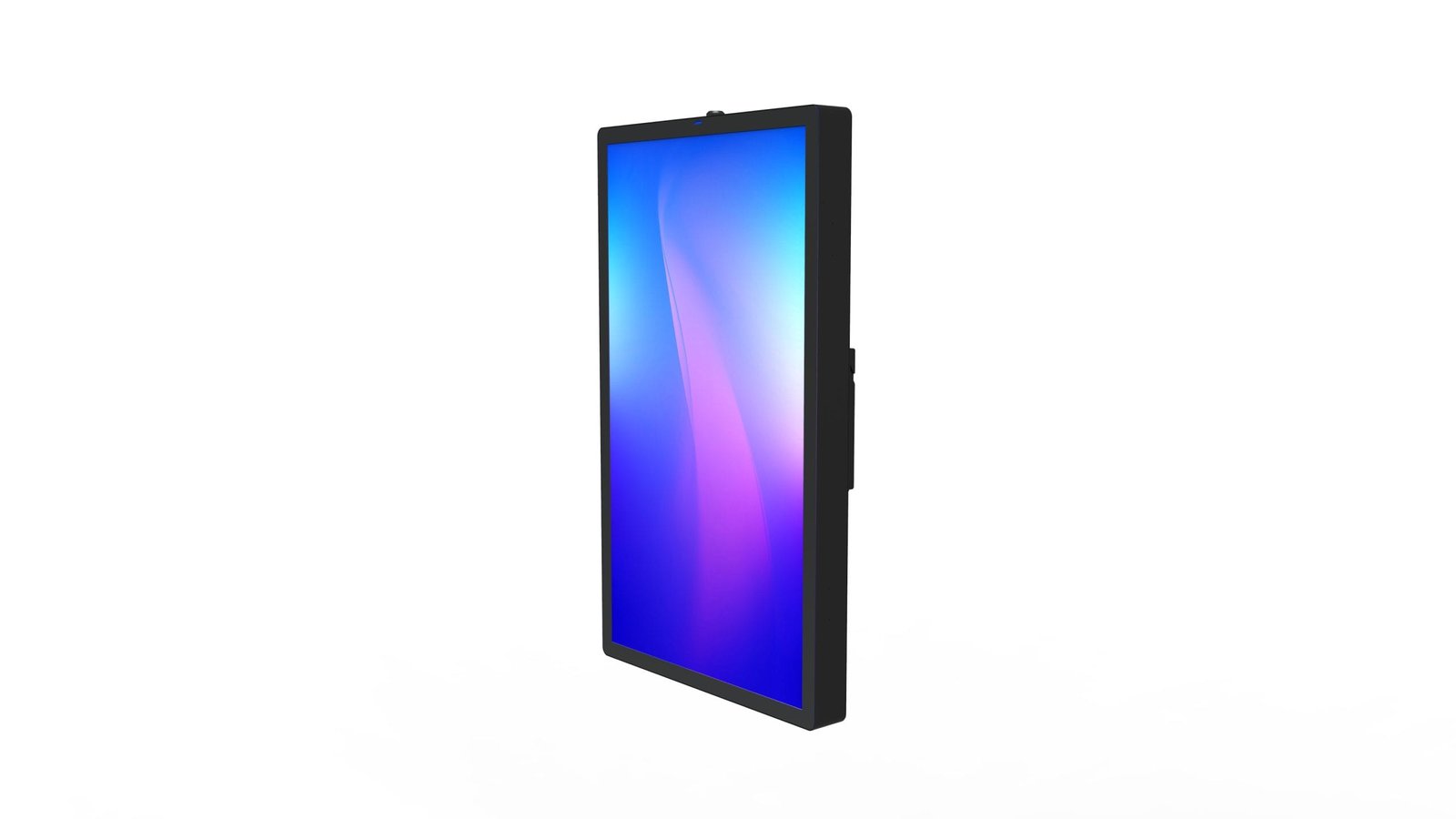

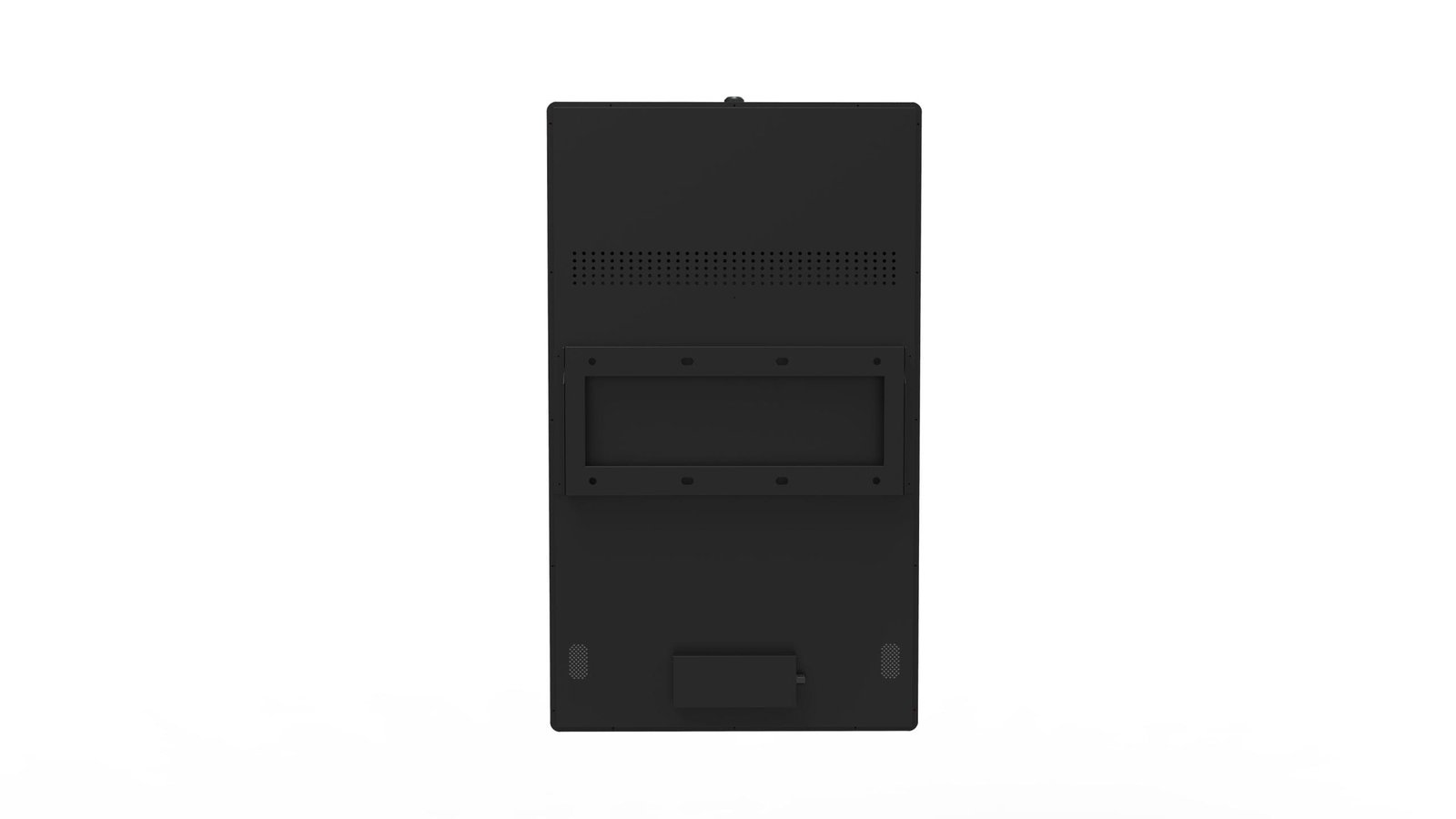

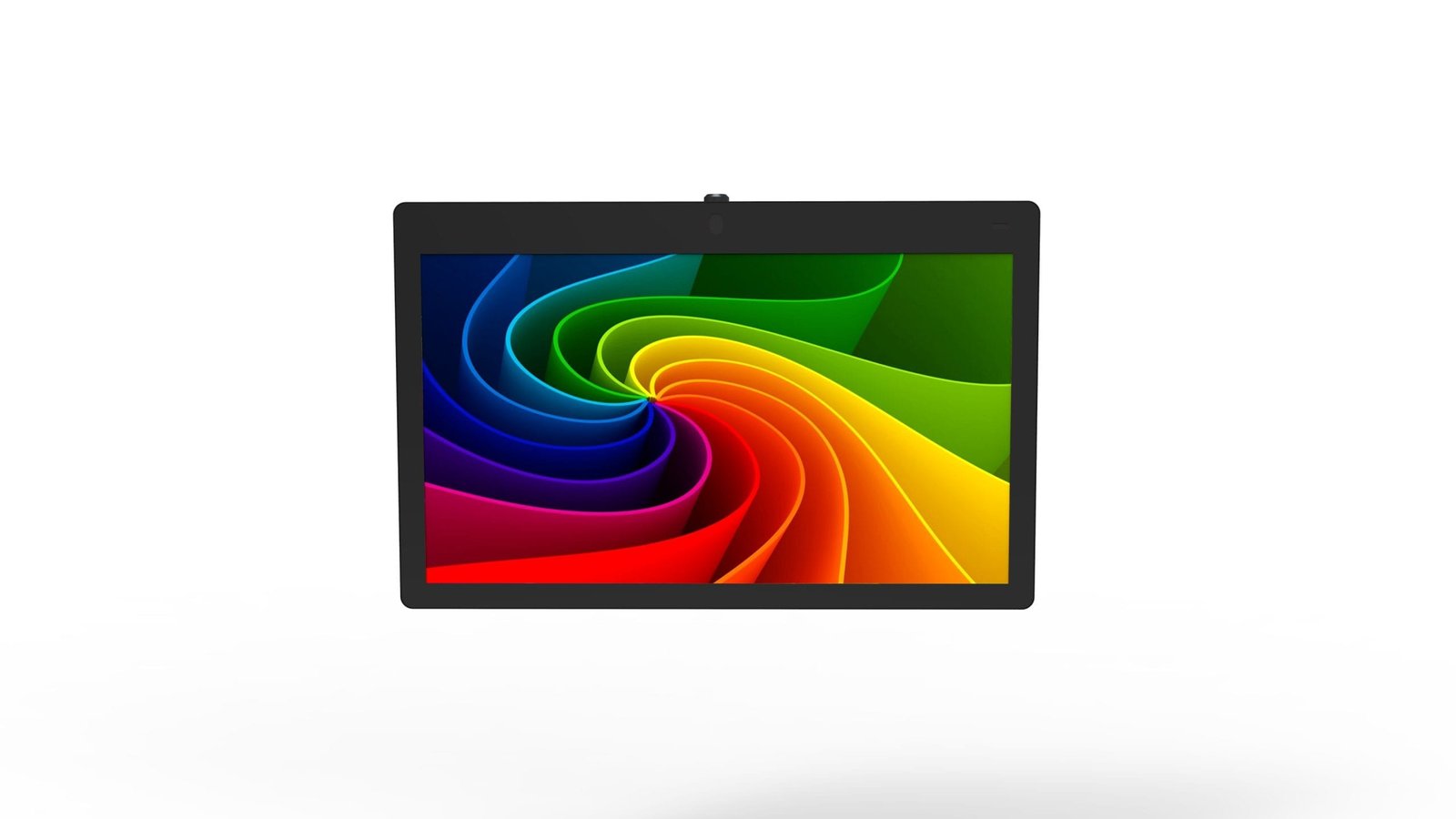

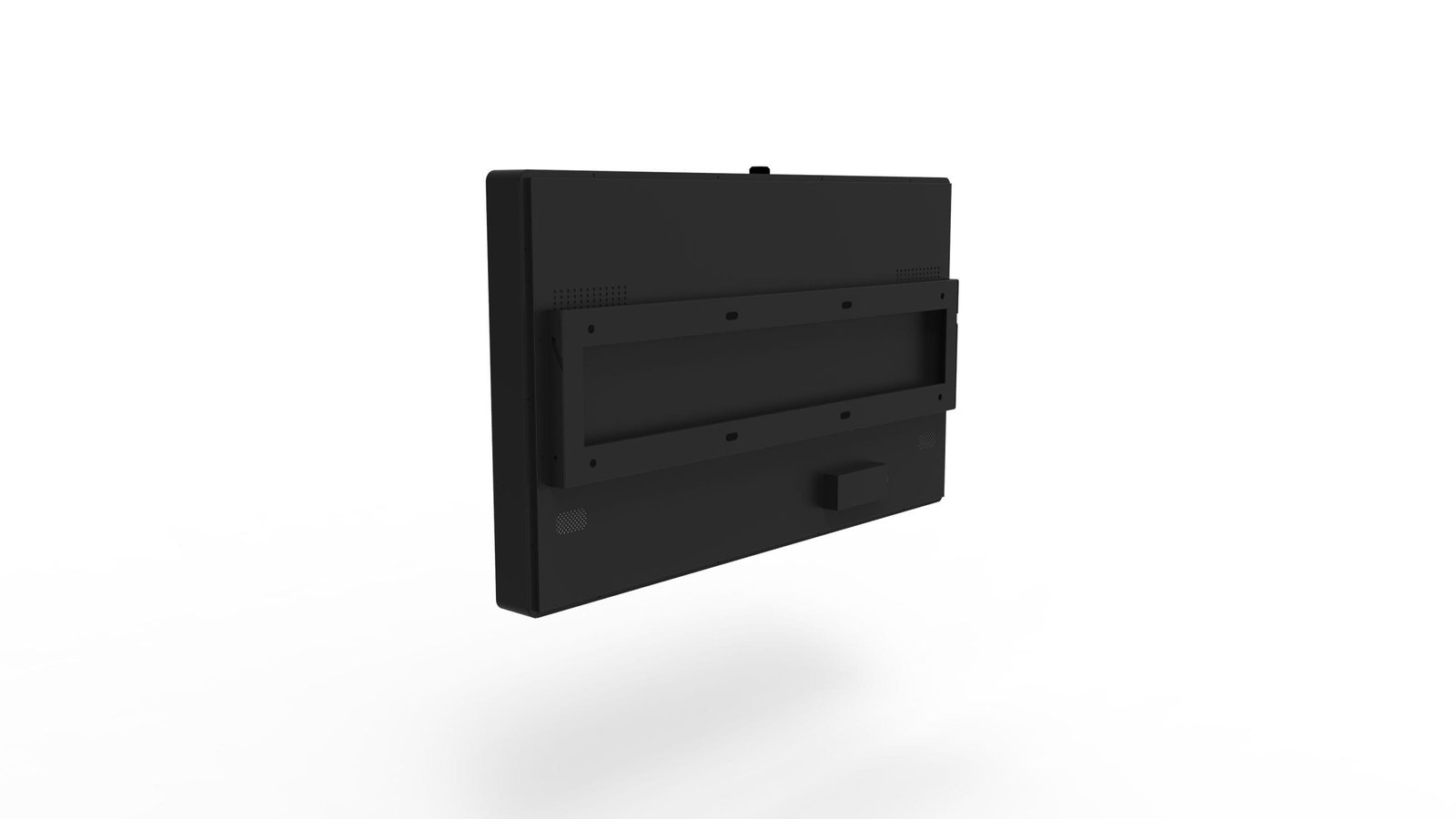

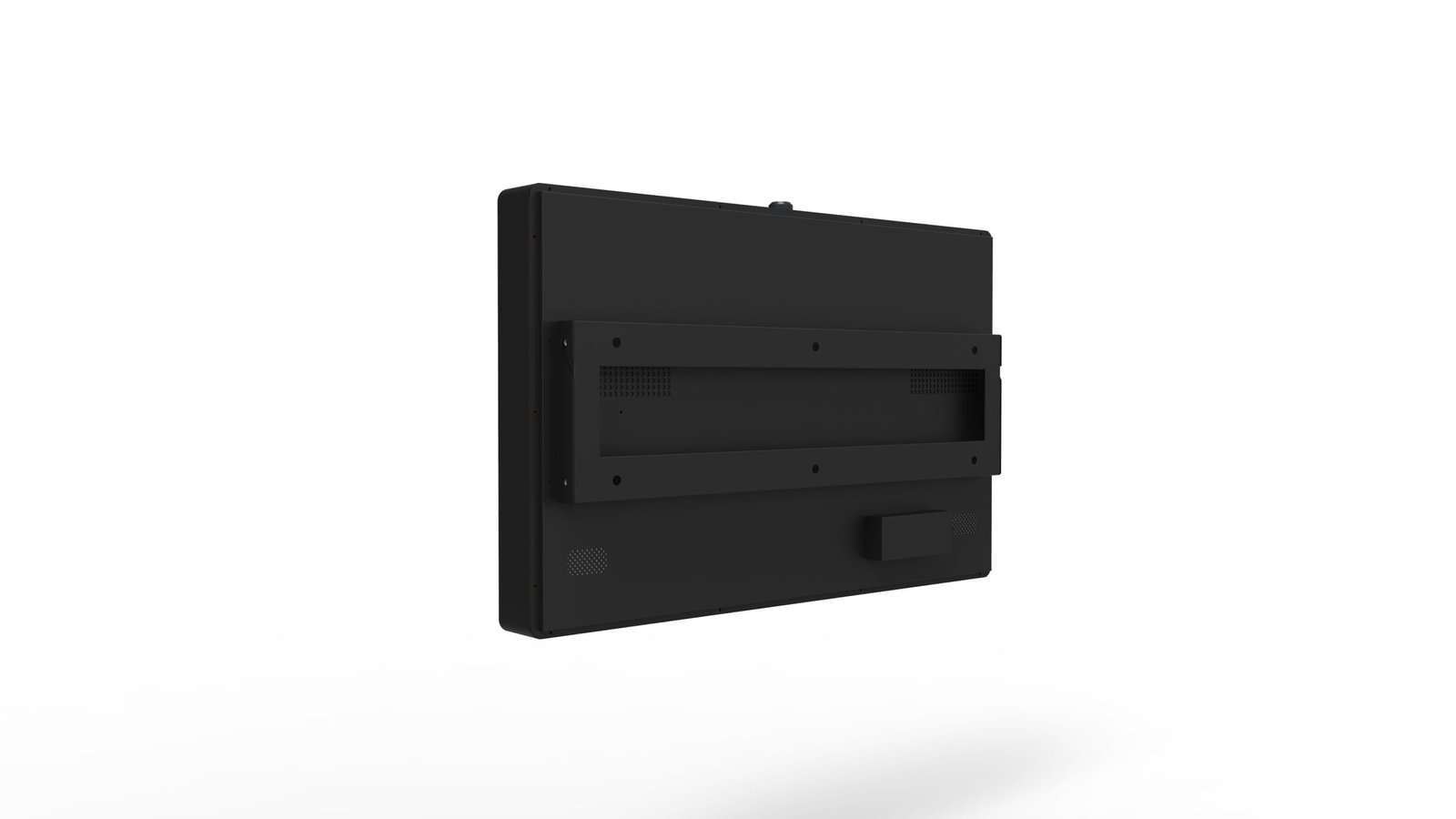

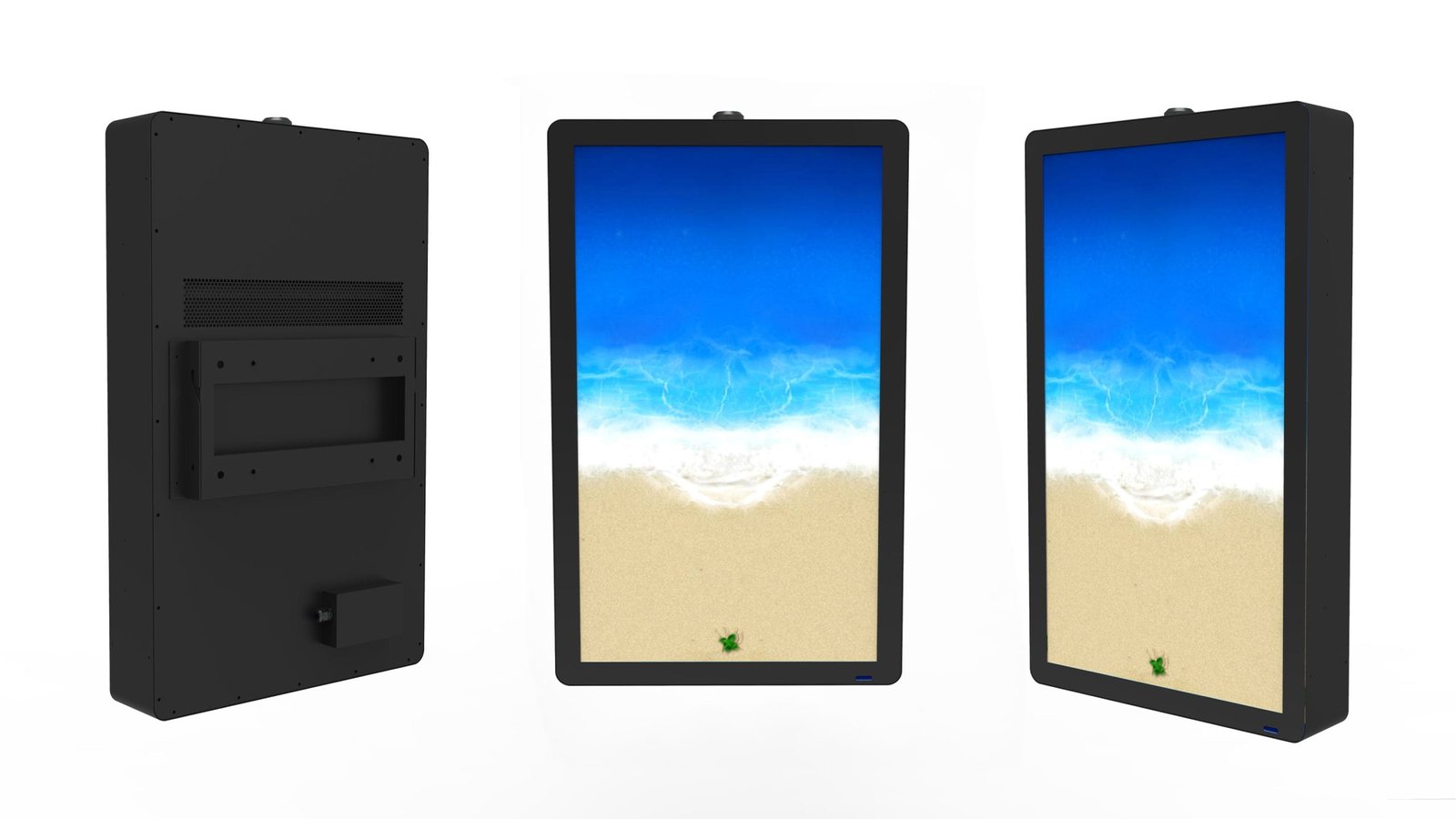

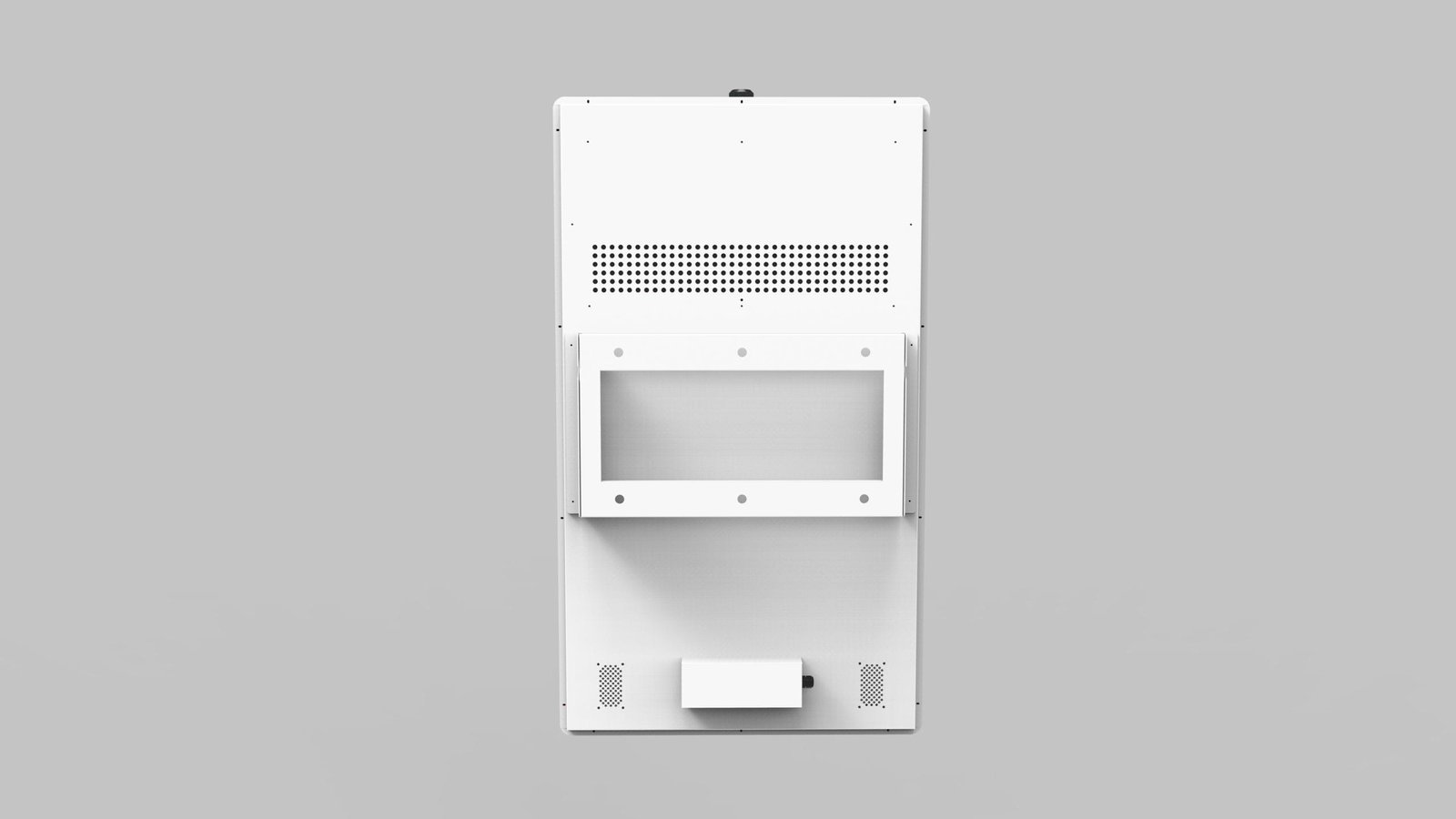

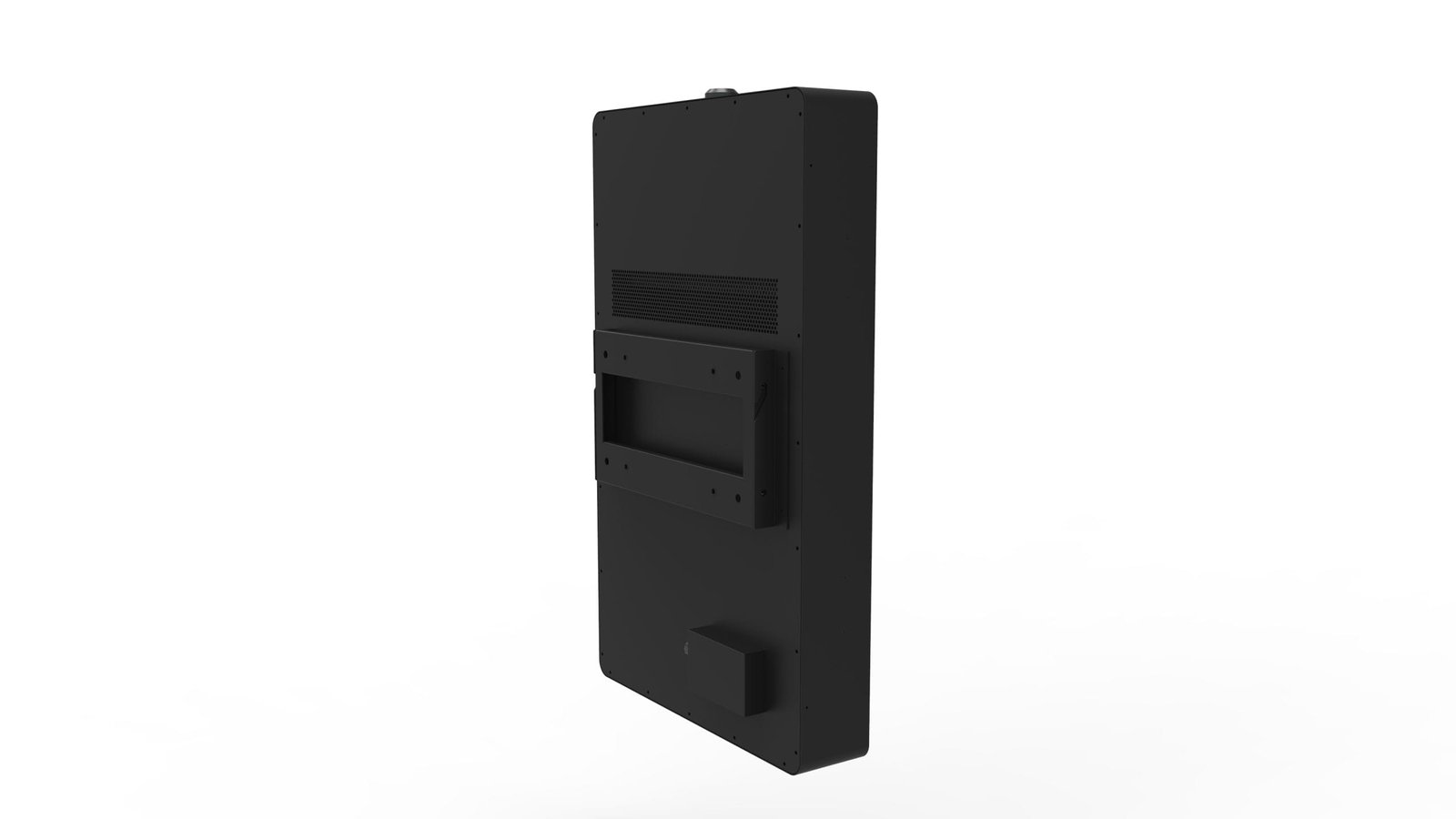

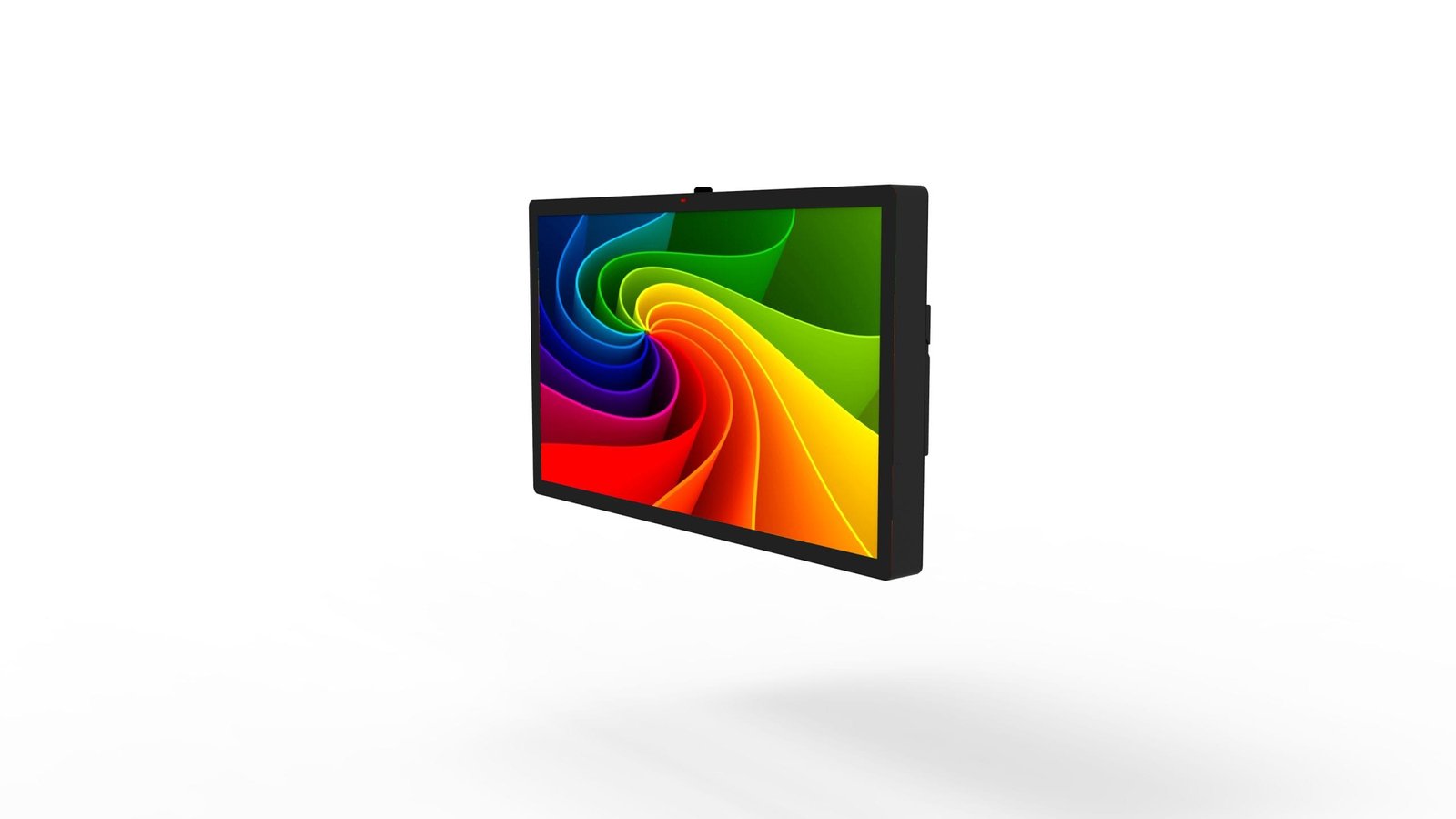

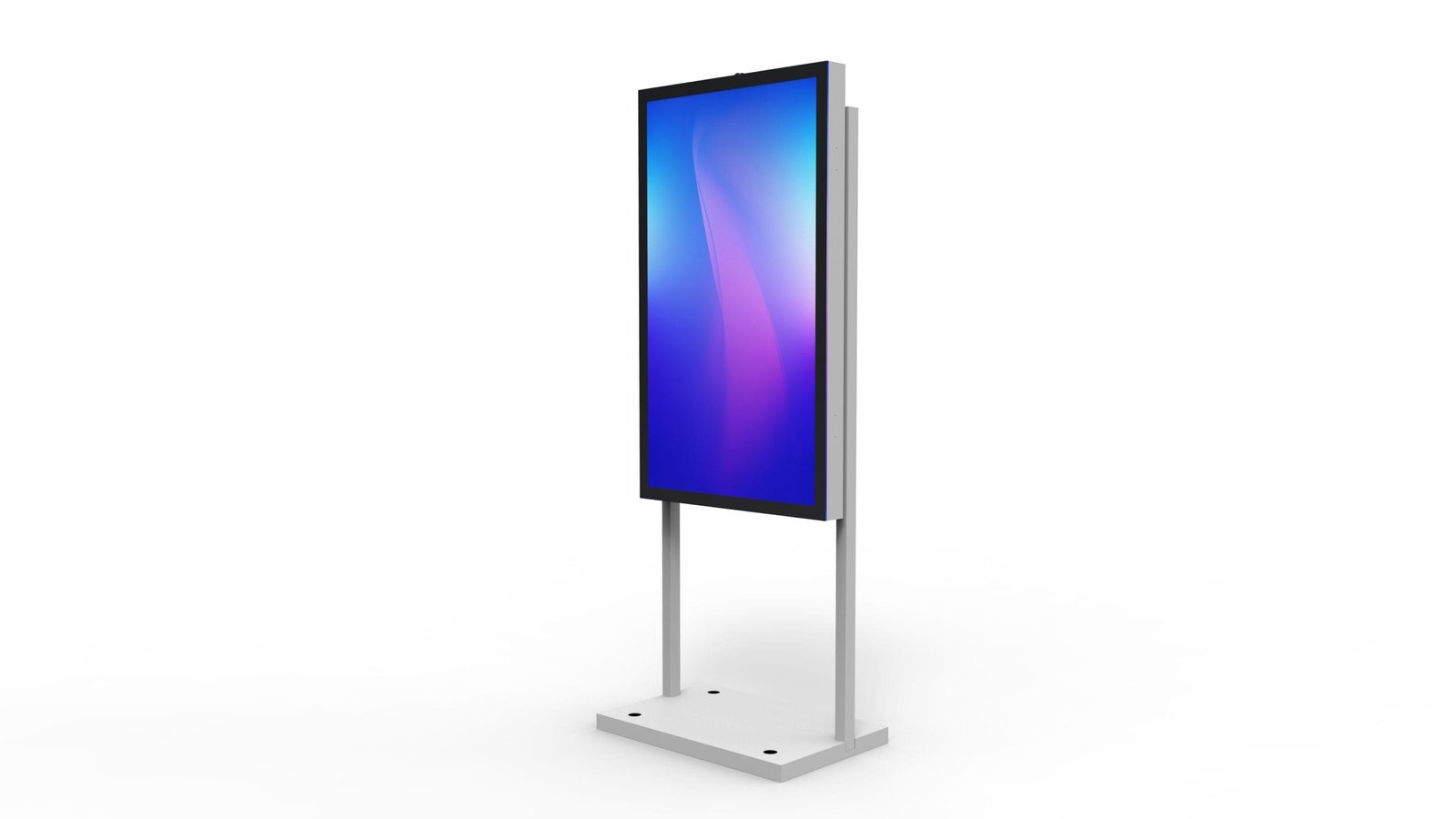

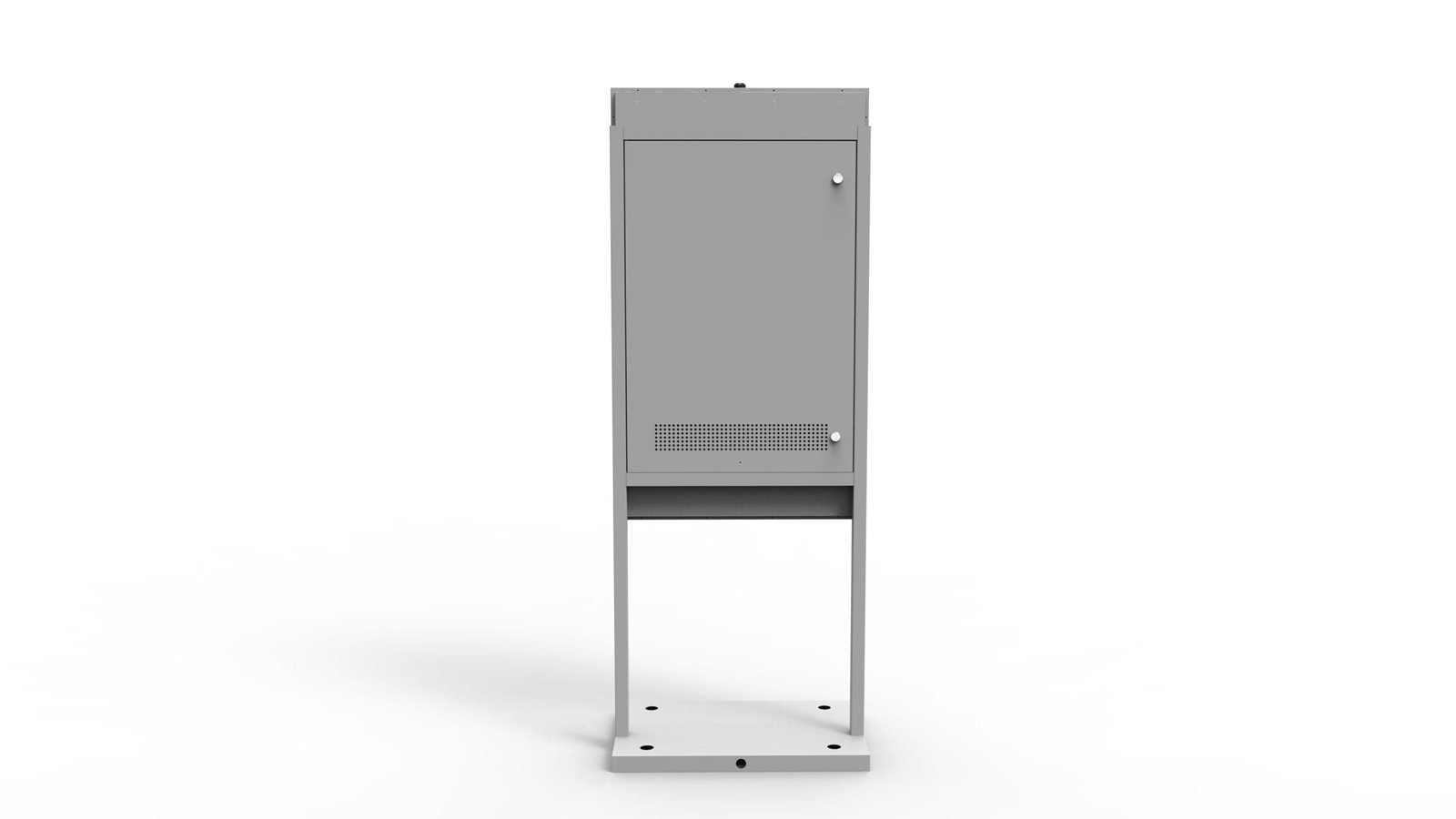

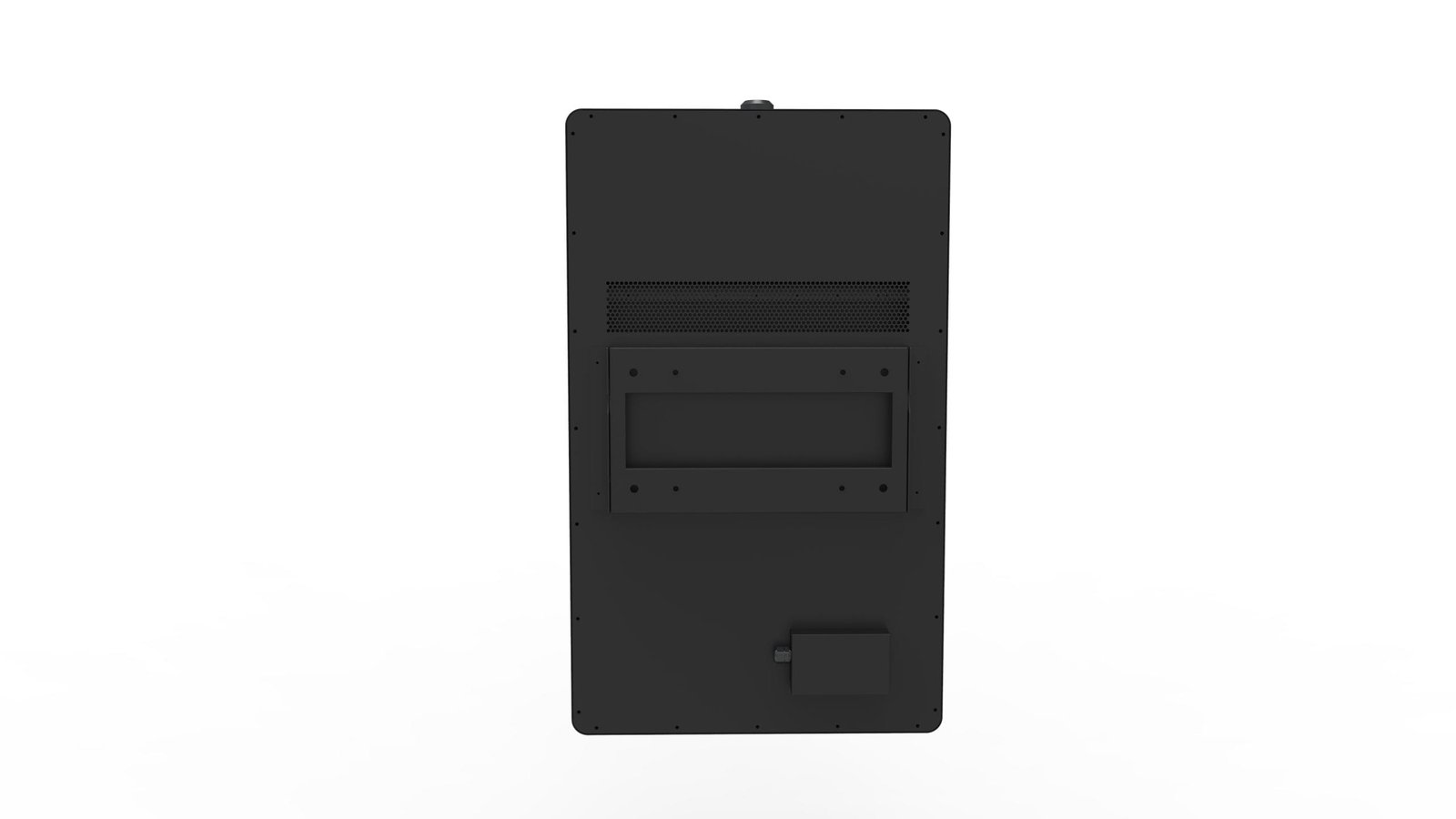

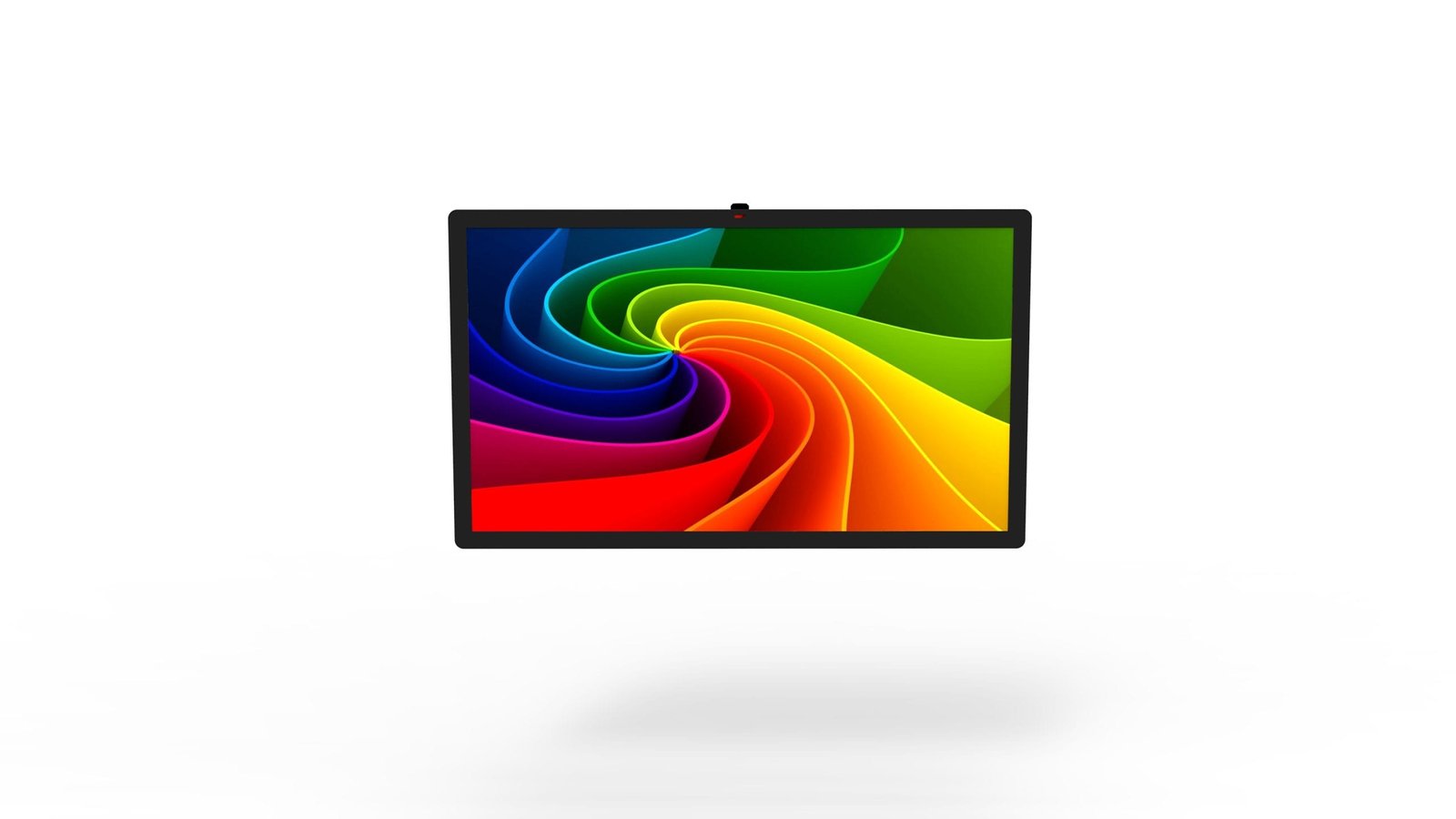

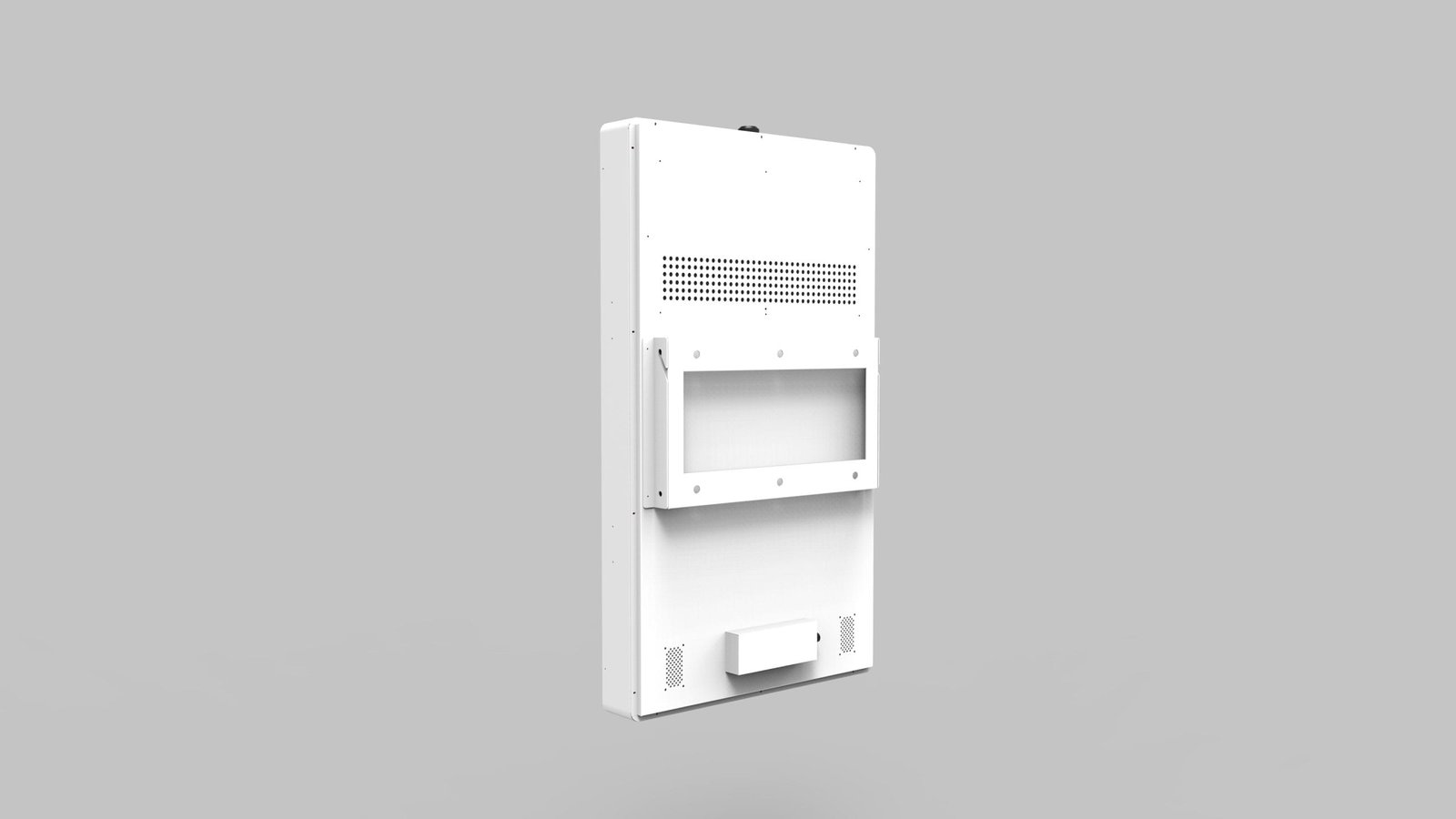

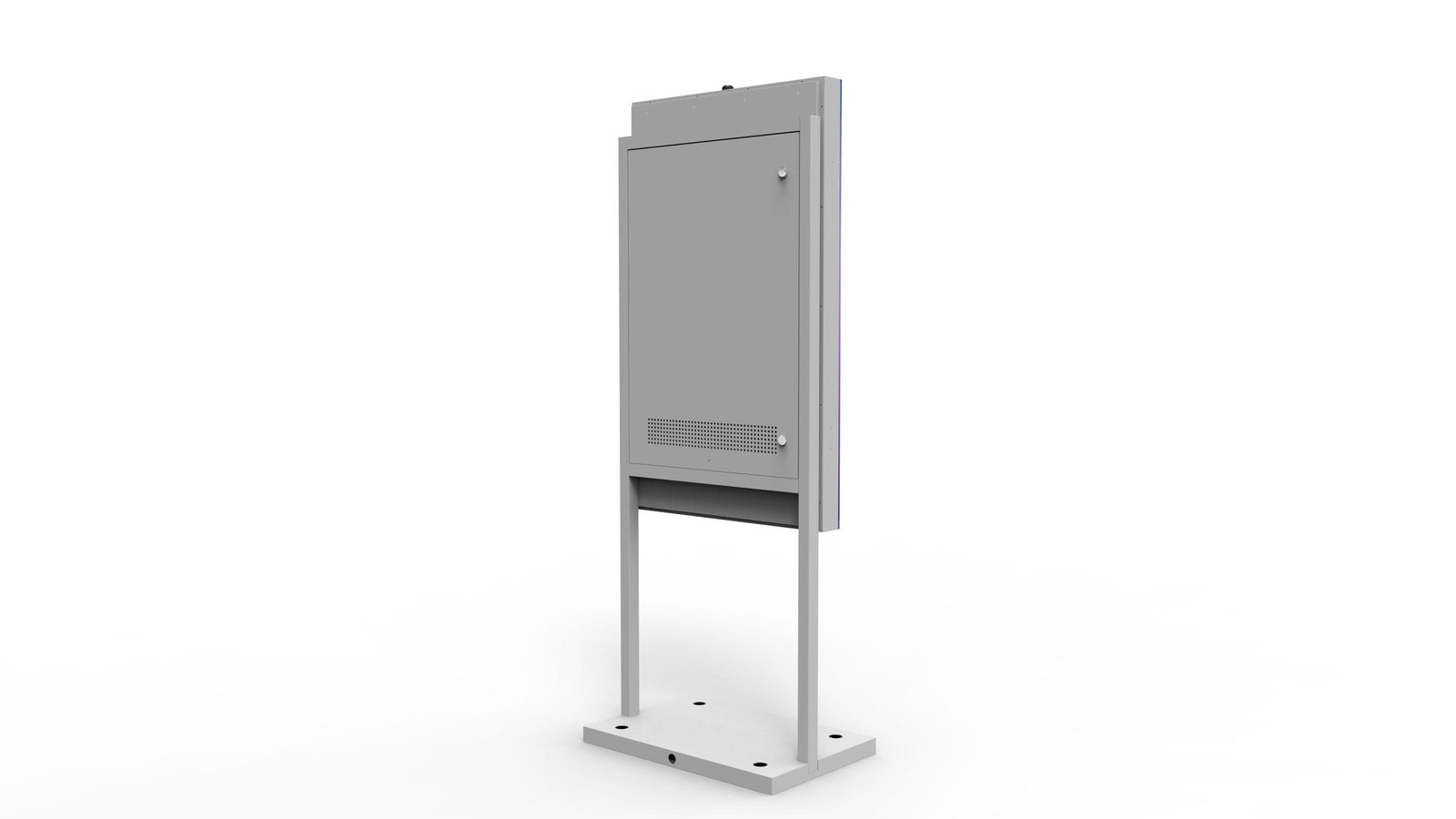

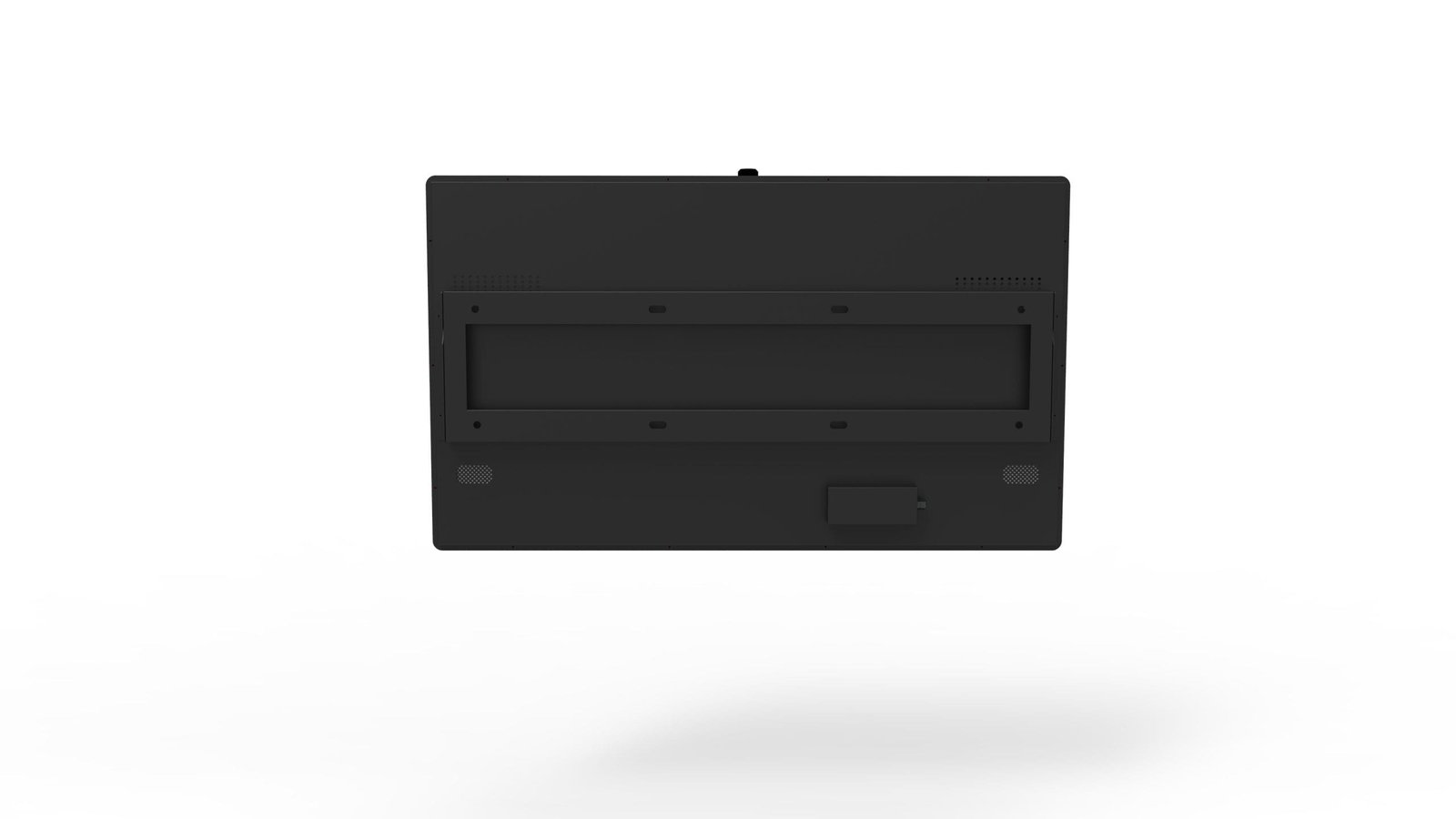

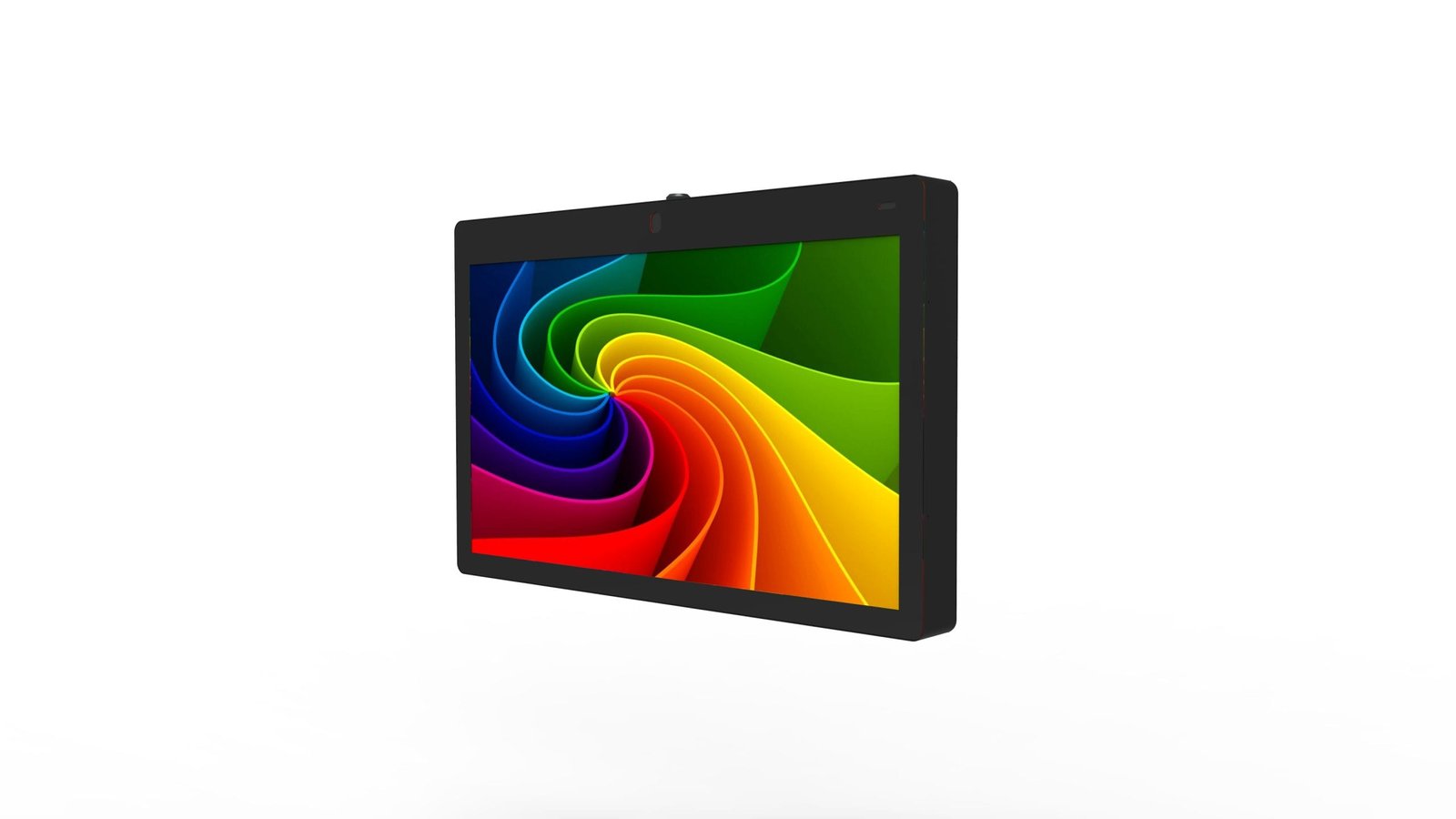

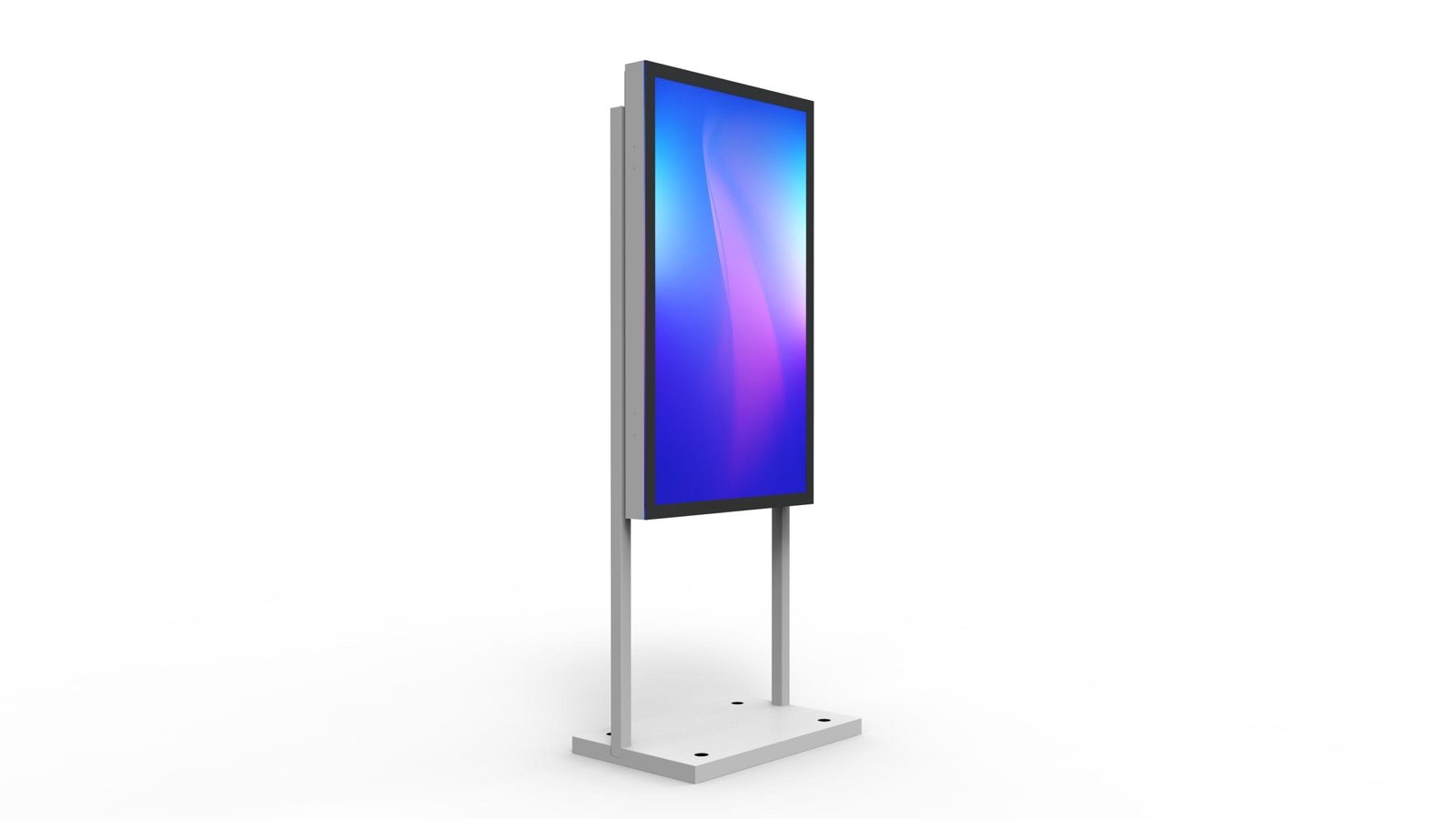

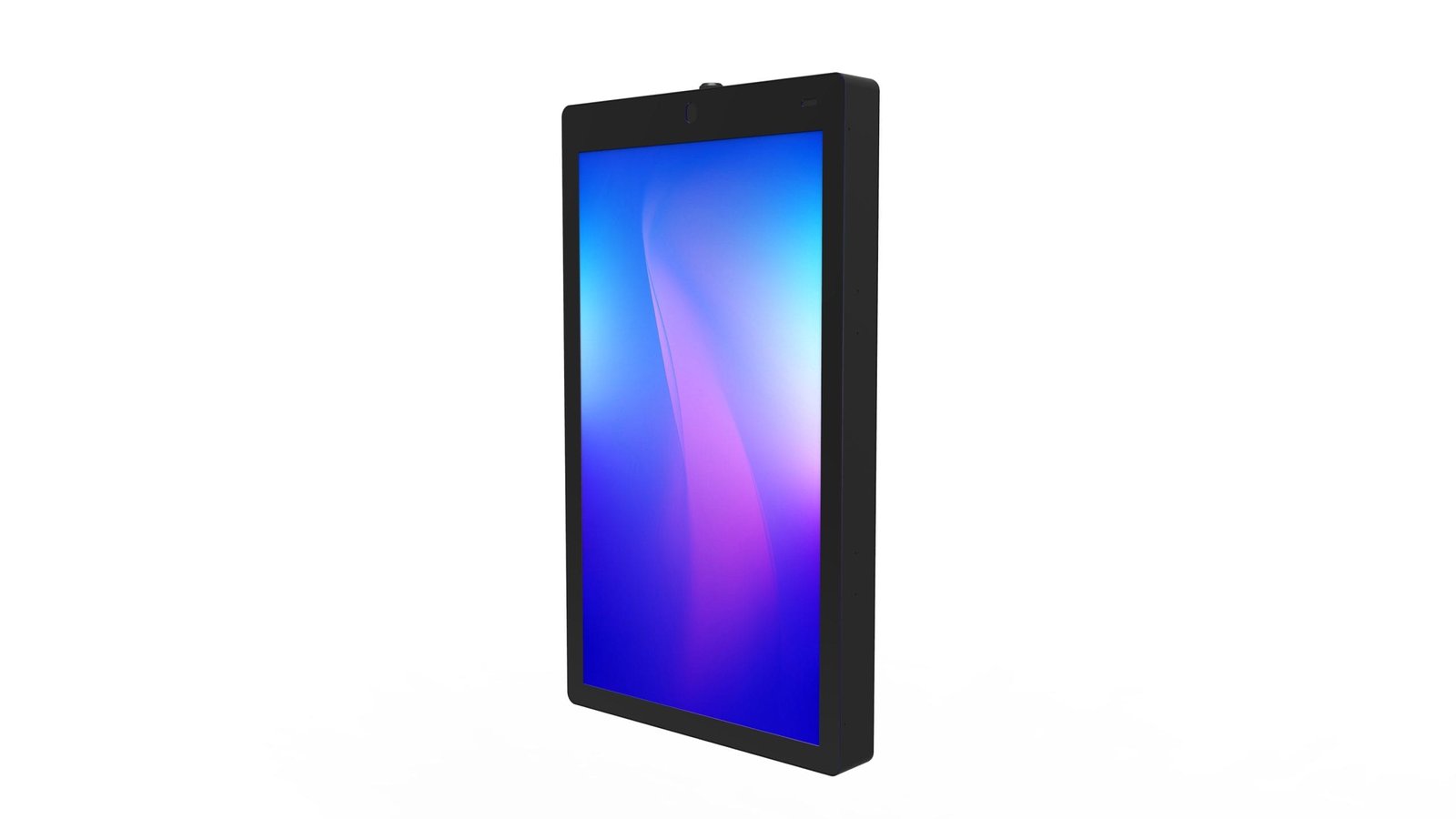

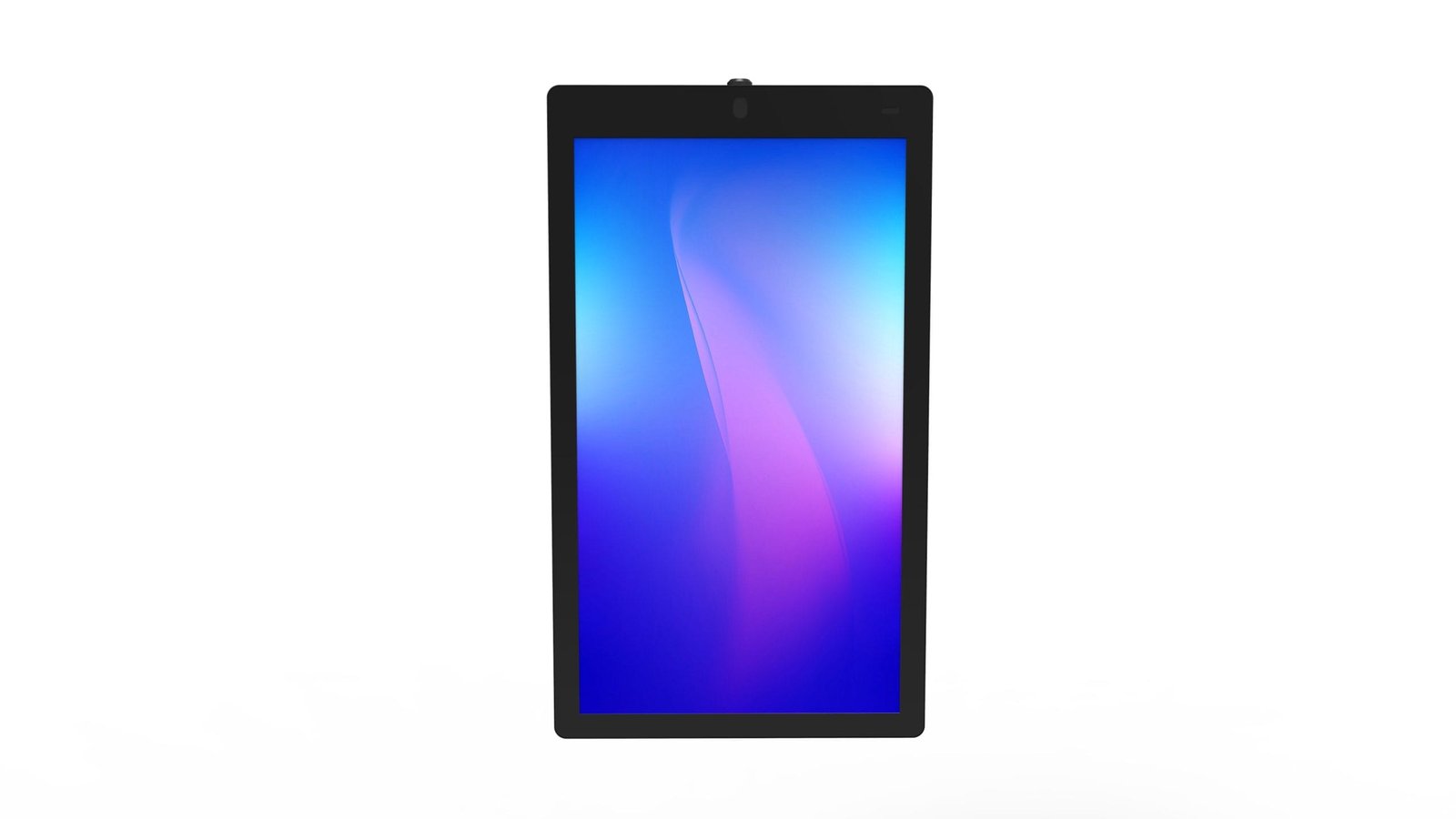

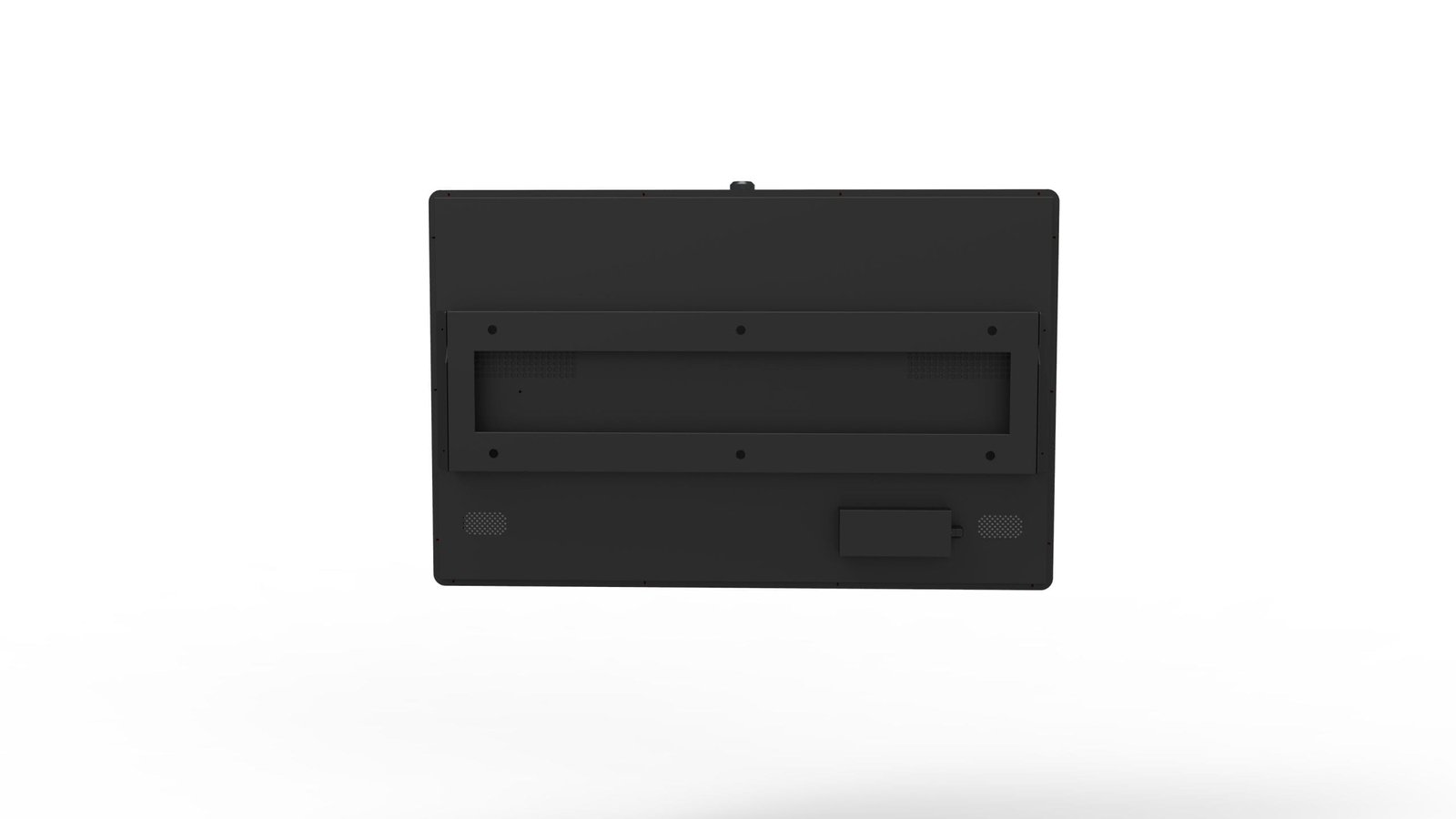

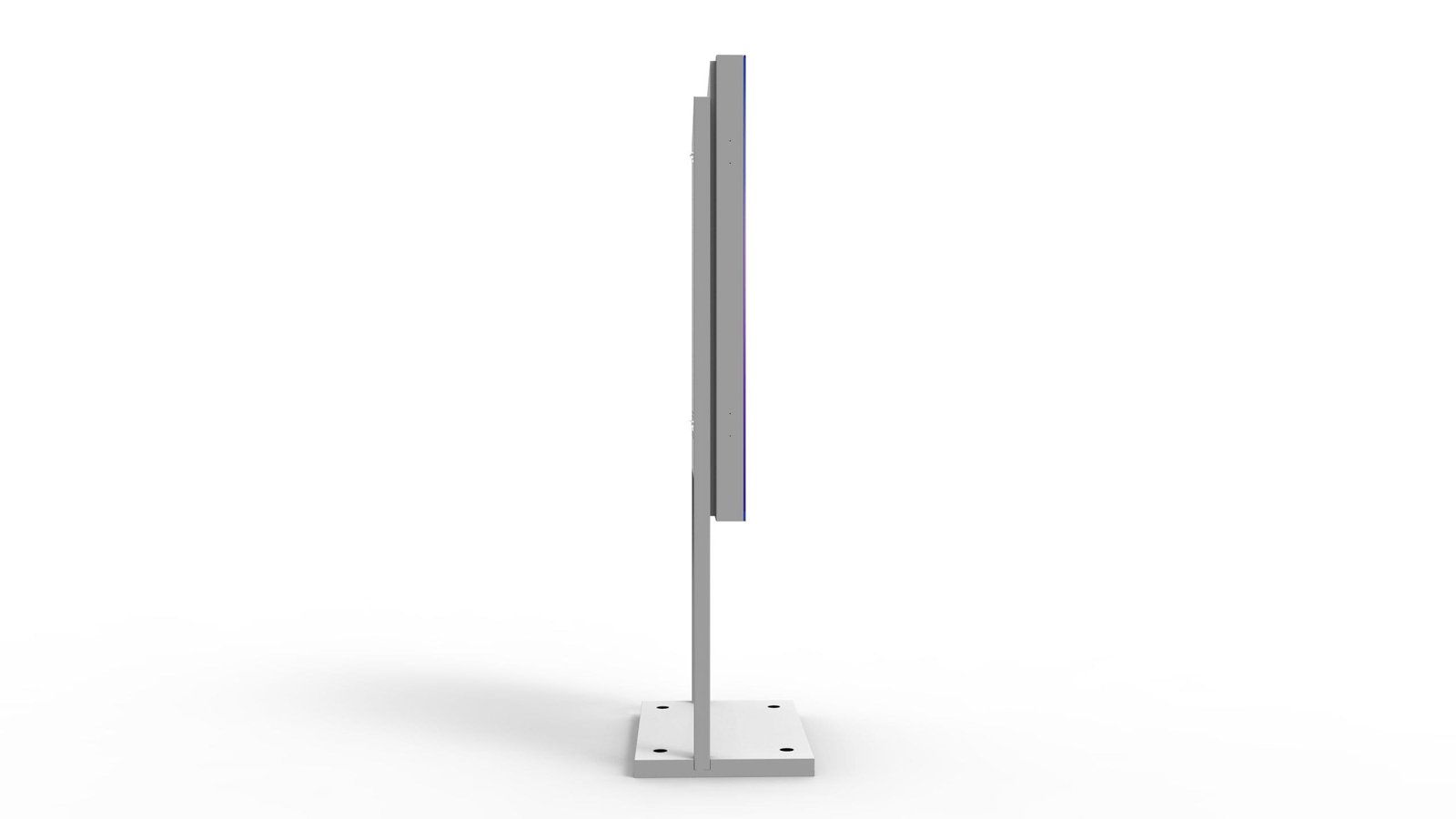

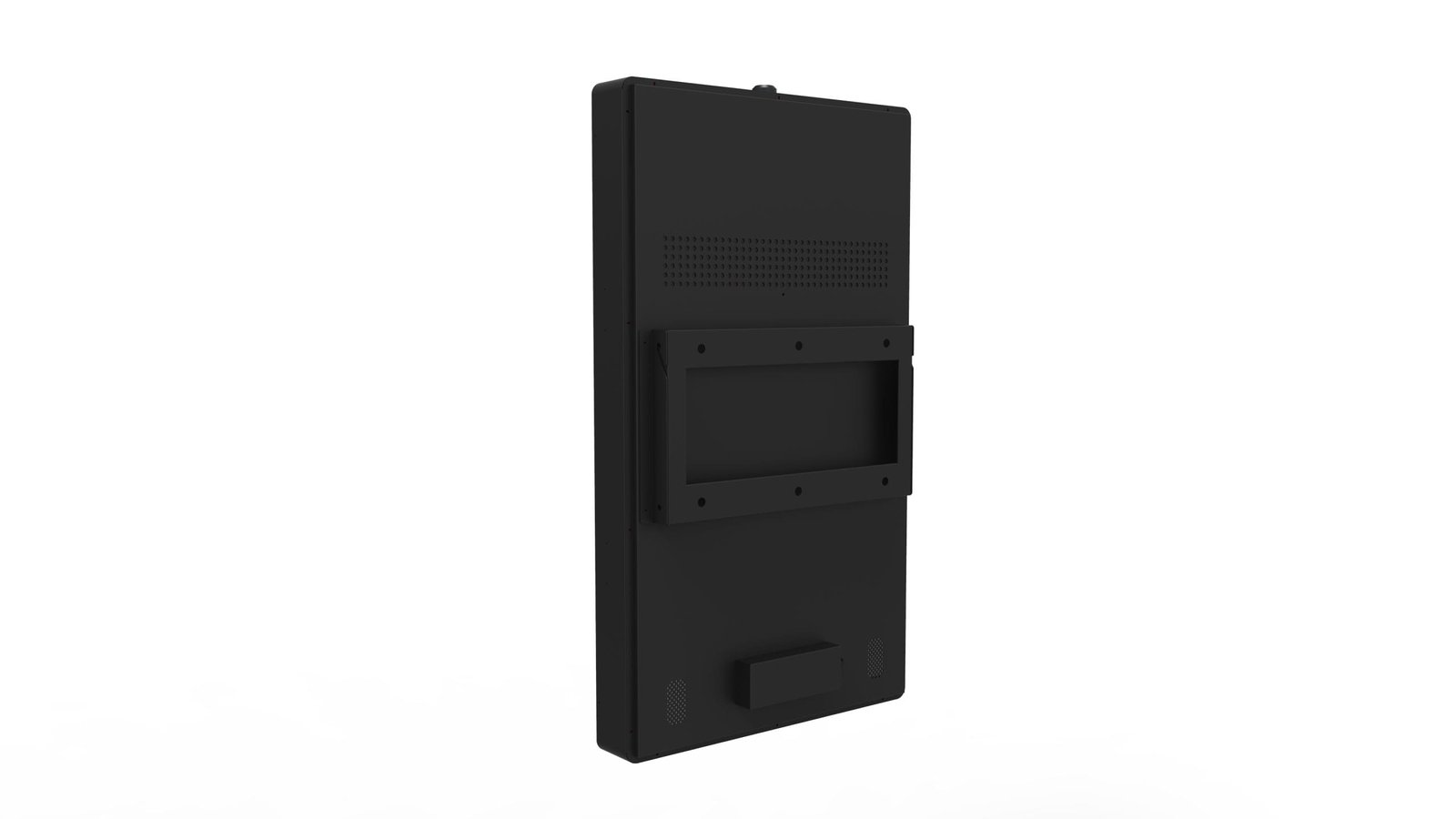

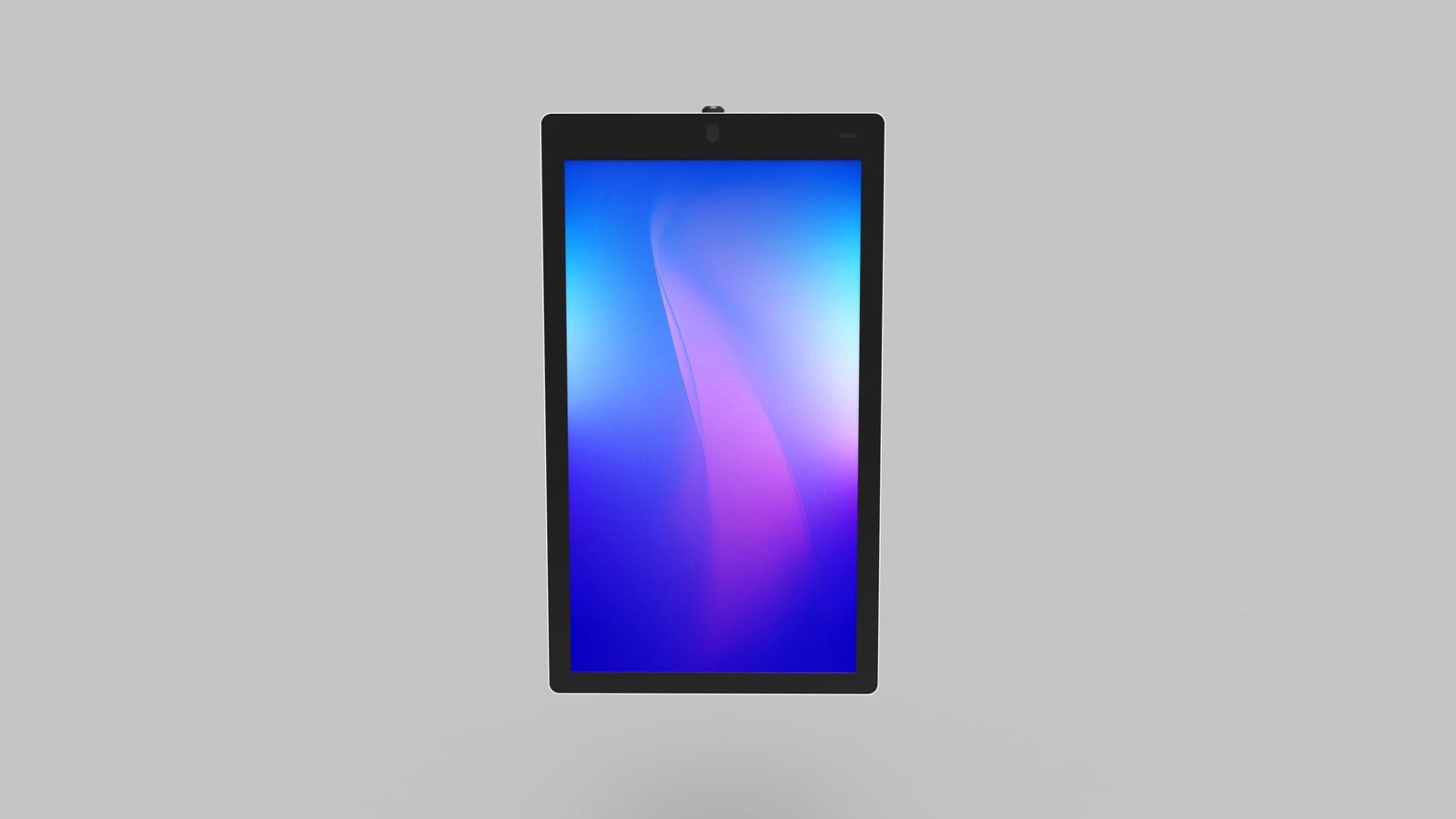

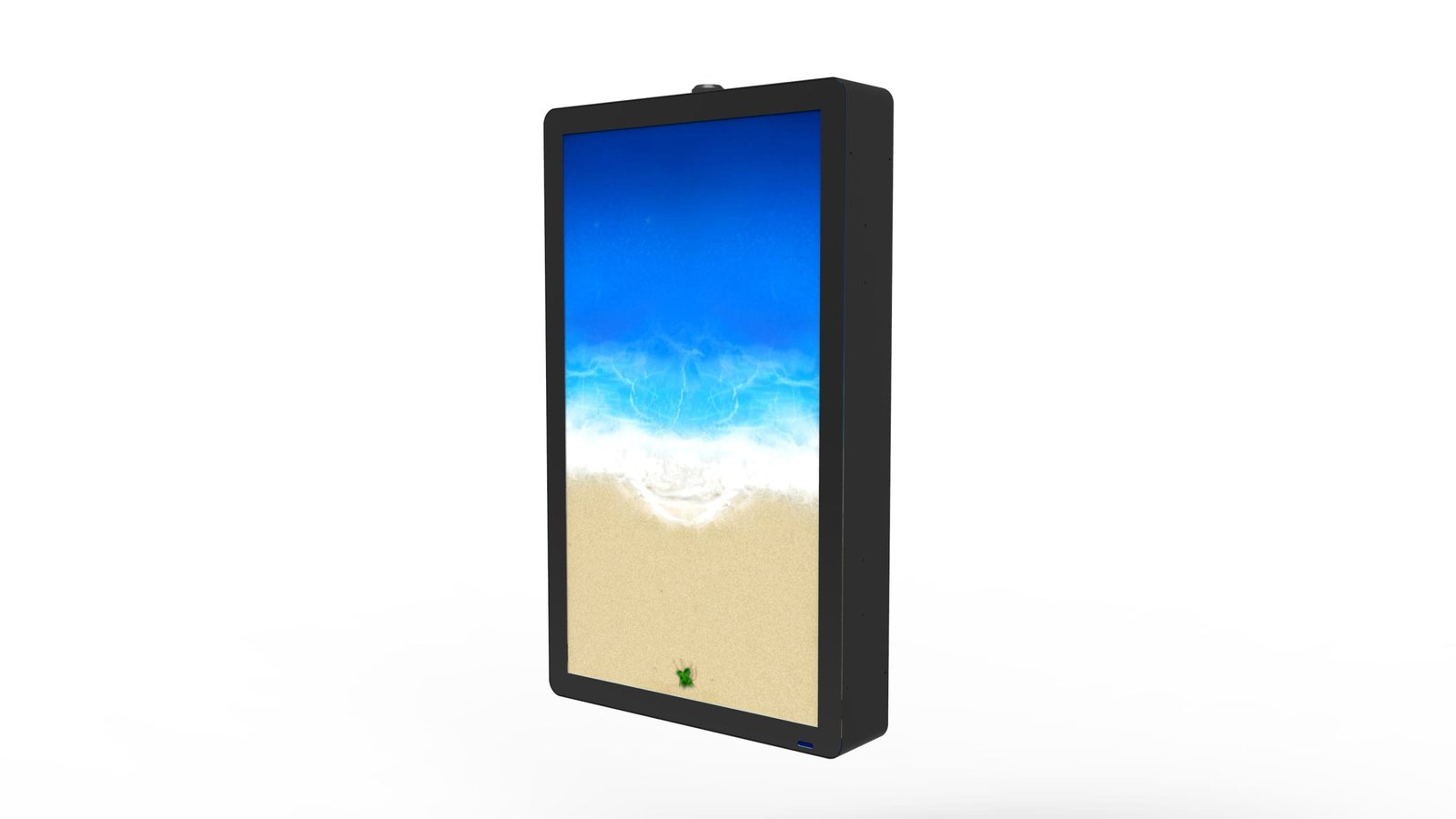

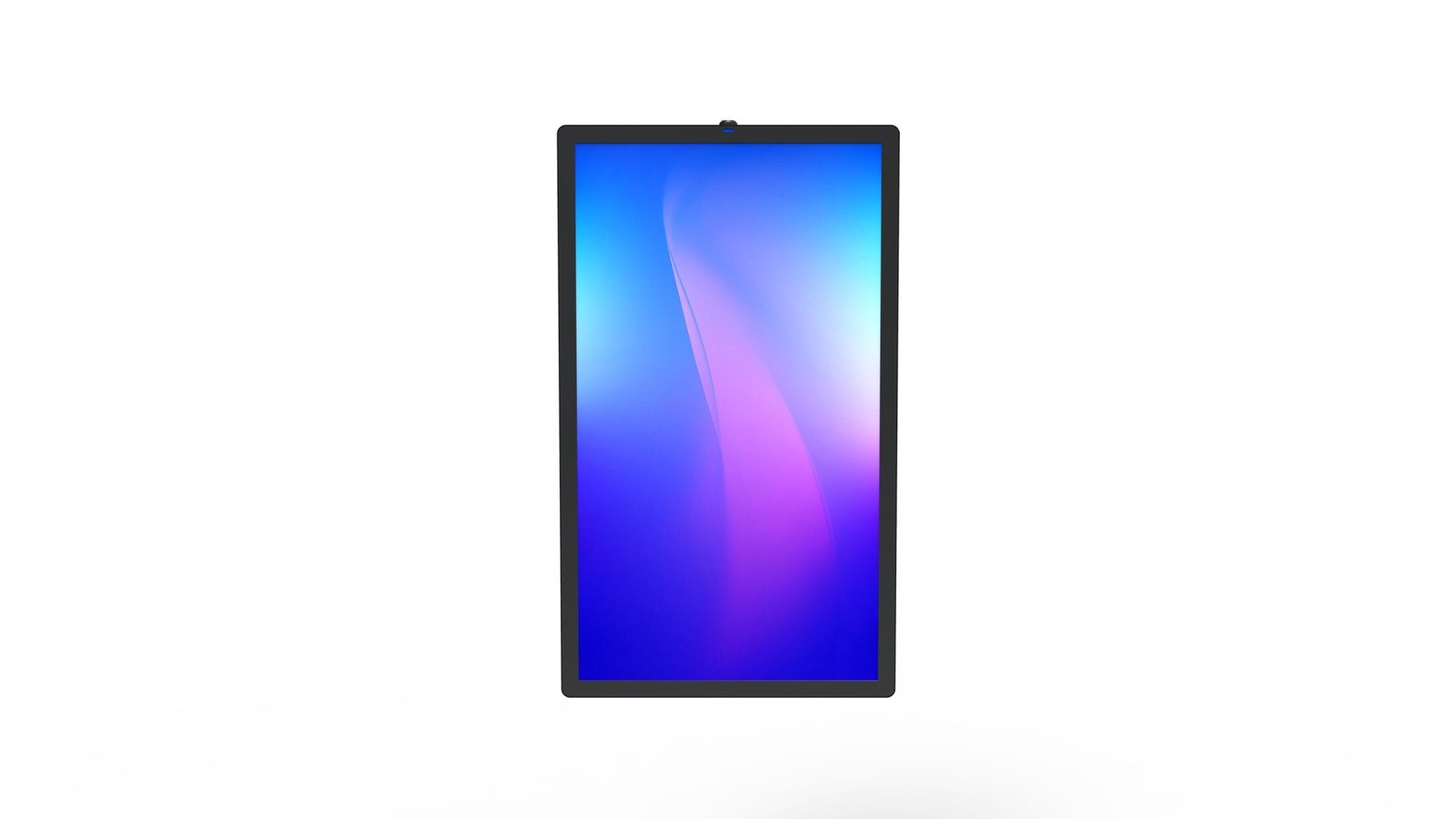

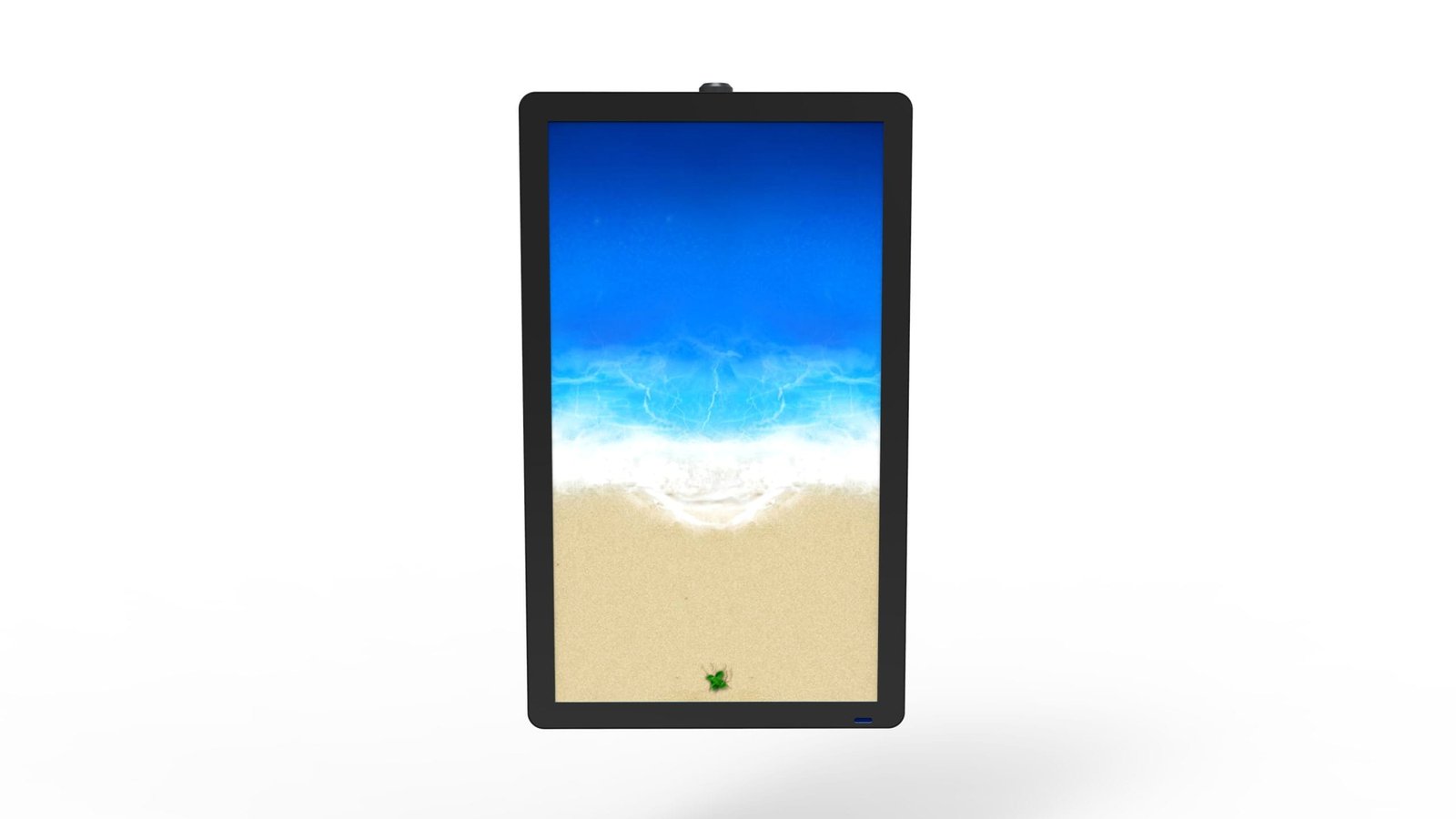

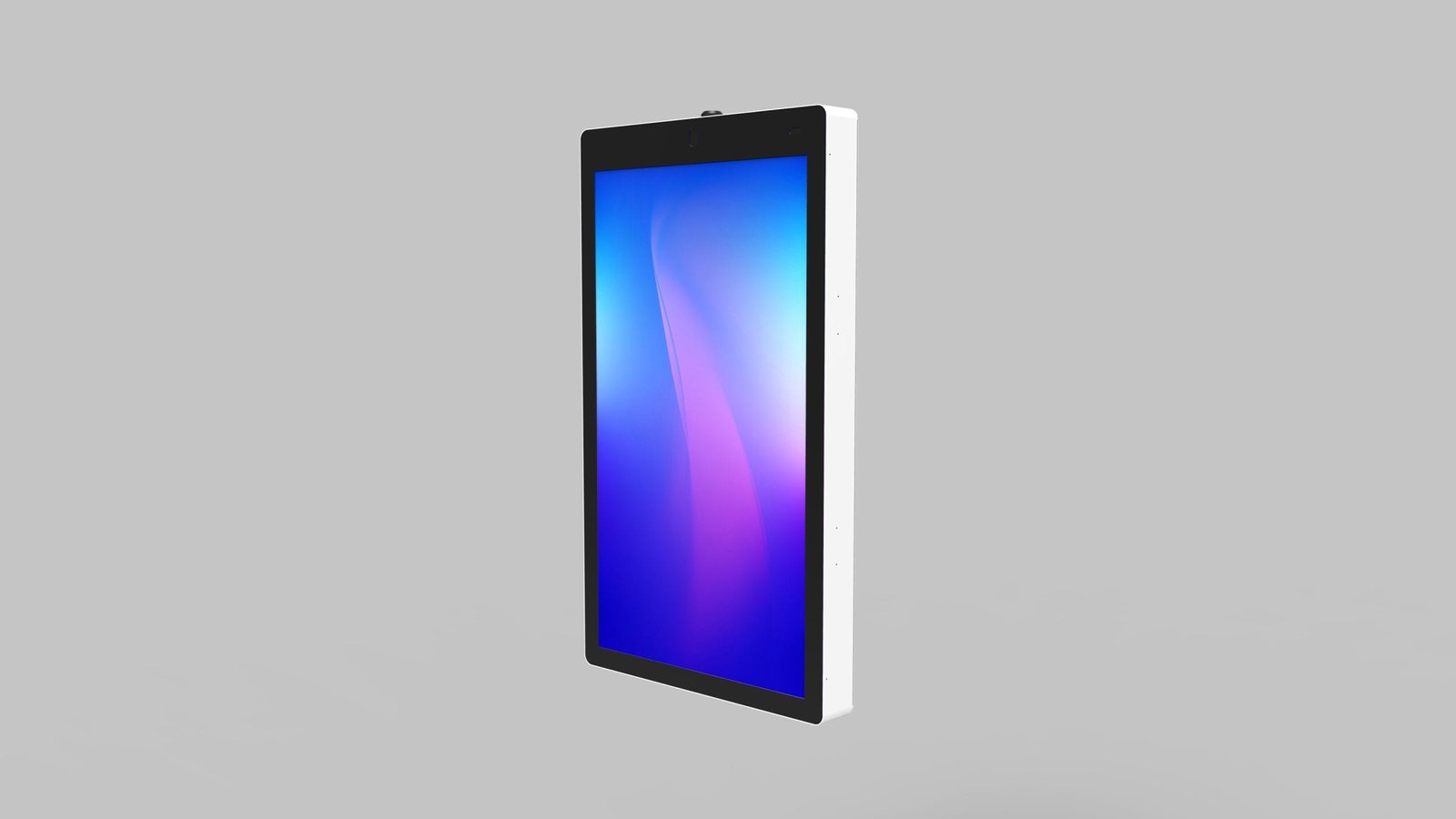

32/43/49/55/65 Outdoor Full-Fit Advertising LCD Display Screen

Quote Now

Main Feactures:

High-brightness LCD screen

LCD backlight brightness 2000-5000nits

Meet the best visual requirements in direct sunlight

Intelligent brightness control

Automatically adjust the brightness of the LCD screen according to the brightness of the ambient light

Can maximize energy consumption savings

Industrial grade panel

LCD panel resistant to 110 degrees

In direct sunlight, the LCD panel does not blacken

All outdoor waterproof and dustproof

Protection class IP55

Outdoor unobstructed use, no water inlet, no dust

Low noise

Low-noise design is particularly suitable for shopping mall environments

The sound below 25dB is as quiet as in the studio

Industrial design ultra-thin body

Narrow frame can be used for multi-screen splicing applications

Ultra-thin, suitable for shopping mall information display

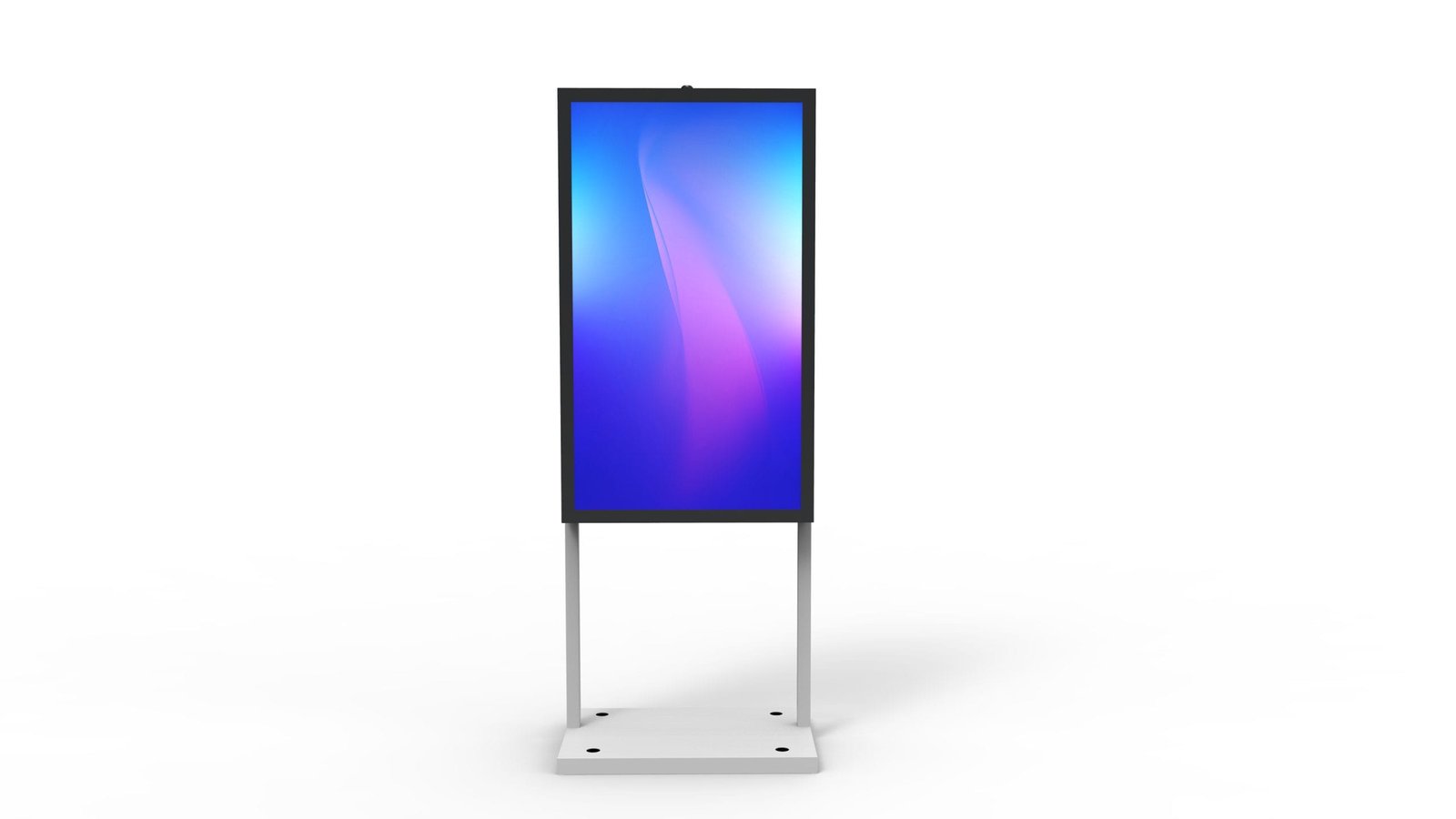

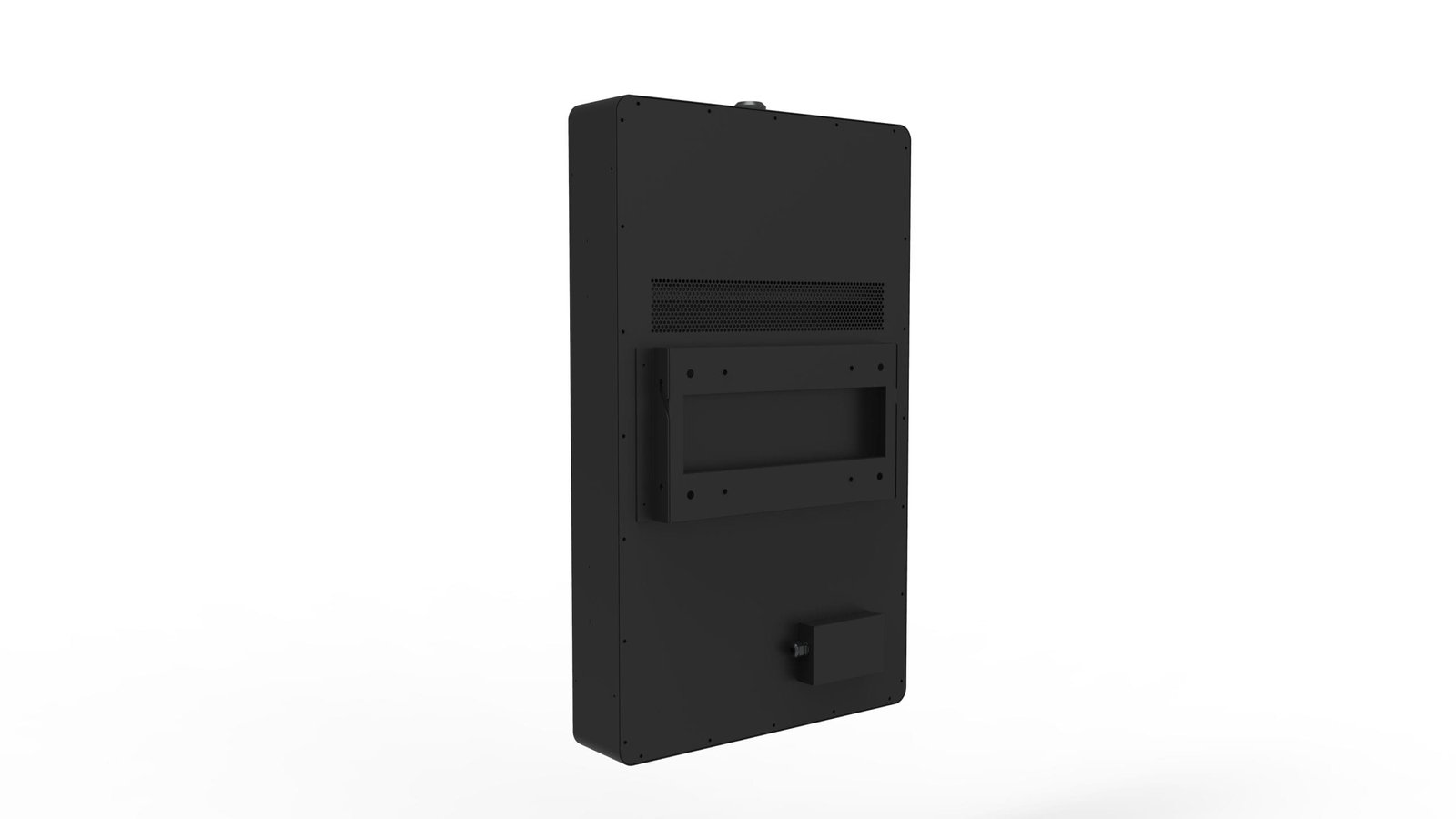

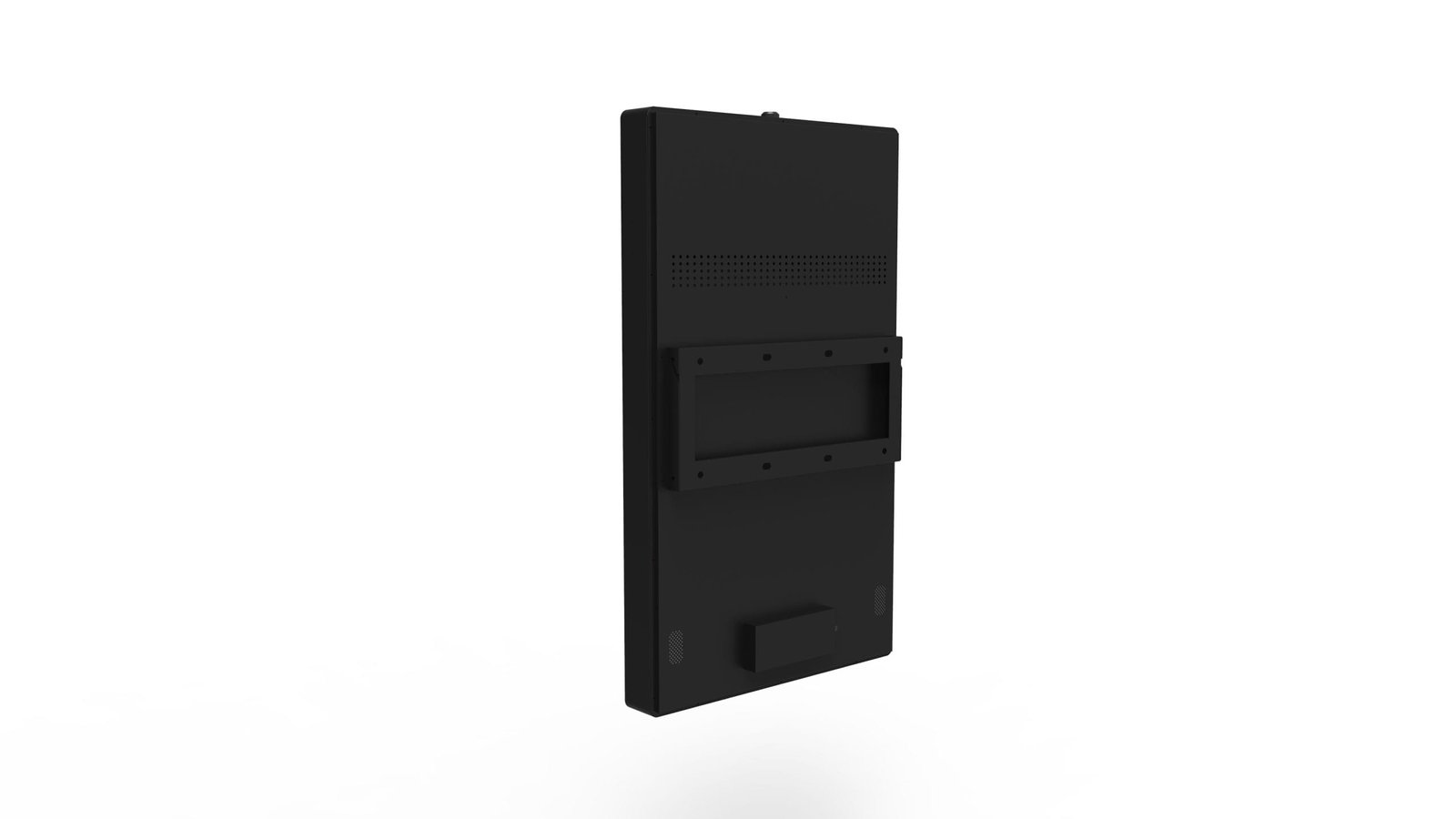

A variety of installation methods, the appearance is more fashionable



Specifications:

32/43/49 inch Specifications

Model number UD32 UD43 UD49
Panel Size 32″ 43″ 49″
Panel Technology IPS,RGB IPS,RGB IPS,M+(RGBW)
Display ratio  16:9  16:9  16:9
Resolution 1920*1080 1920*1080 1920*1080
Brightness 2000nits 2000nits 2000nits
Contrast  1200:1  1200:1  1200:1
Viewing Angle  178/178  178/178  178/178
Life span 50000Hrs 50000Hrs 50000Hrs
Working Hours 7*24Hrs 7*24Hrs 7*24Hrs
Display Mode Horizontal and vertical optional Horizontal and vertical optional Horizontal and vertical optional
Motherboard Specification Rk3288 4Cores Cortex-A17  2GB  8GB
Interface HDMI Output  WIFI  RJ45  TF Deck USB*2   DC12V
Appearance Color Black Black Black
Frame size 30mm 40mm 40mm
Horizontal screen dimensions 757*455*100mm 1028*656*100mm **mm
Vertical screen dimensions 767*462*100mm 1068*616*100mm **mm
Net weight 15kg 22kg 24kg
Package size 860*550*200mm 1100*670*200mm 1250*750*200mm
Gross weight 18kg 28kg 31kg
Working environment Operating temperature  -25–55degree  -25–55degree  -25–55degree
Working humidity  5%–90%  5%–90%  5%–90%
Power supply Input voltage 110V or 220V, 50/60Hz 110V or 220V, 50/60Hz 110V or 220V, 50/60Hz
Maximum power 230W 300W 370W

55/65inch Specifications

Model number FSHD550-D25 FSHD650-D25
Panel Size 55″ 65″
Panel Technology IPS,M+(RGBW) IPS,M+(RGBW)
Display ratio 16:9 16:9
Resolution 3840*2160 3840*2160
Brightness 2000nits 2000nits
Contrast 1200:1 1200:1
Viewing Angle 178/178 178/178
Life span Haze 3% Haze 3%
Working Hours 50000Hrs 50000Hrs
Display Mode 7*24Hrs 7*24Hrs
Specification Horizontal and vertical optional Horizontal and vertical optional
Motherboard Interface Rk3288 4Cores Cortex-A17  2GB  8GB
Color HDMI Output  WIFI  RJ45  TF Deck USB*2   DC12V
Appearance Frame size Black Black
Horizontal screen dimensions 40mm 40mm
Vertical screen dimensions **mm **mm
Net weight **mm **mm
Package size 31kg 38kg
Gross weight 1350*840*200mm 1580*980*200mm
Operating temperature 40kg 48kg
Working environment Working humidity -25–55degree -25–55degree
Input voltage 5%–90% 5%–90%
Power supply Maximum power 110V or 220V, 50/60Hz 110V or 220V, 50/60Hz
Size 400W 550W
