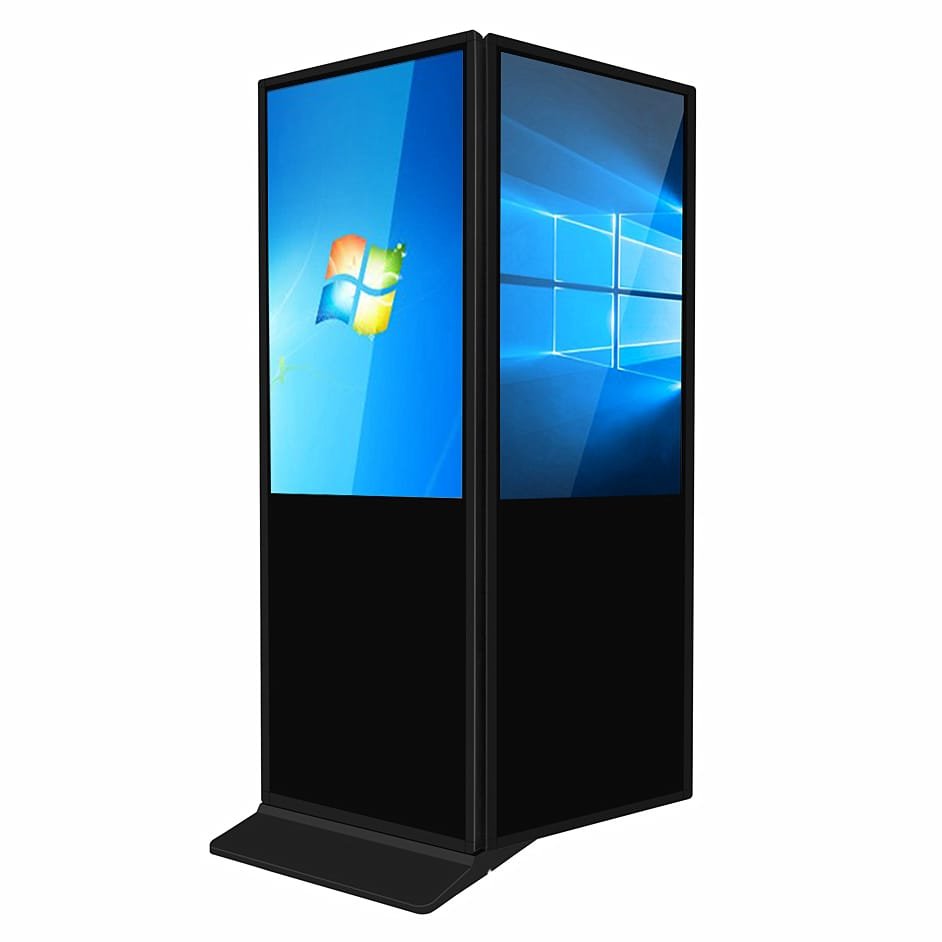

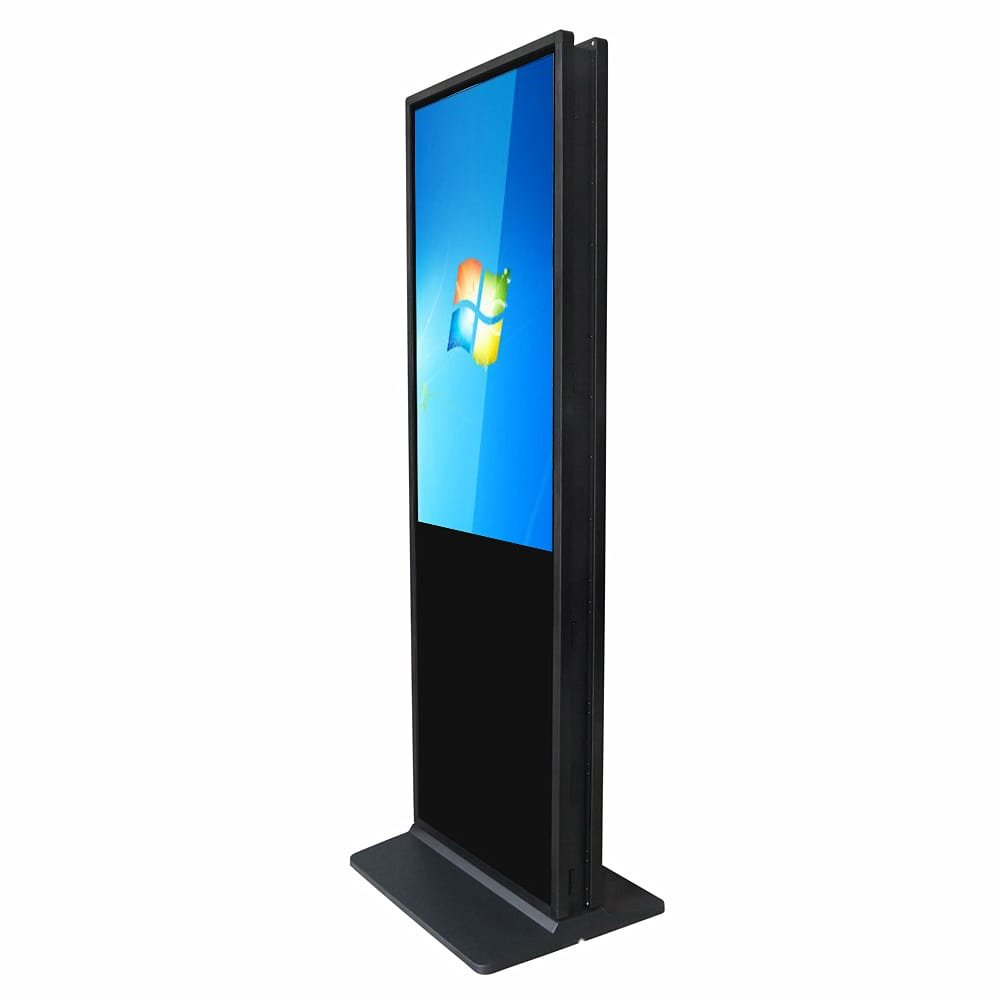

Indoor Super Slim Dual side LCD Advertising Display Screen

Indoor Super Slim Dual side LCD Advertising Screen

Quote Now

Main Features:

  • The surface of LCD advertising machine adopts industrial-grade fine lines of the lacquer which is baked .And it adpopts

industrial-grade LCD screen .With intelligent PC operating system and high quality digital output,the machine resolution is

1920*1080 or more higher.It can make a good perform tasks according to the time order strictly through the intelligent

control chip built-in microcomputer.With diversified individuality choices,different-sized fashion apperance for

customized,creating different digital concept of pubicity.

  • Optional Functions: Open frame ,Touch screen, Motion sensor, wifi/3G 4G/RJ45 network function, Android/Windows OS

etc……

  • The machine operating temperature: -10~75°C,Storage Temperature:-10~75°C.
  • Can be set split-screen 1to8 area for broadcasting video w/ photo, w/ other display of logo/ date/ weather/ roll-text or

subtitles.

  • Support terminal set password, for protect viciously control from outside. Support modify terminal IP by server software

or by remote control.

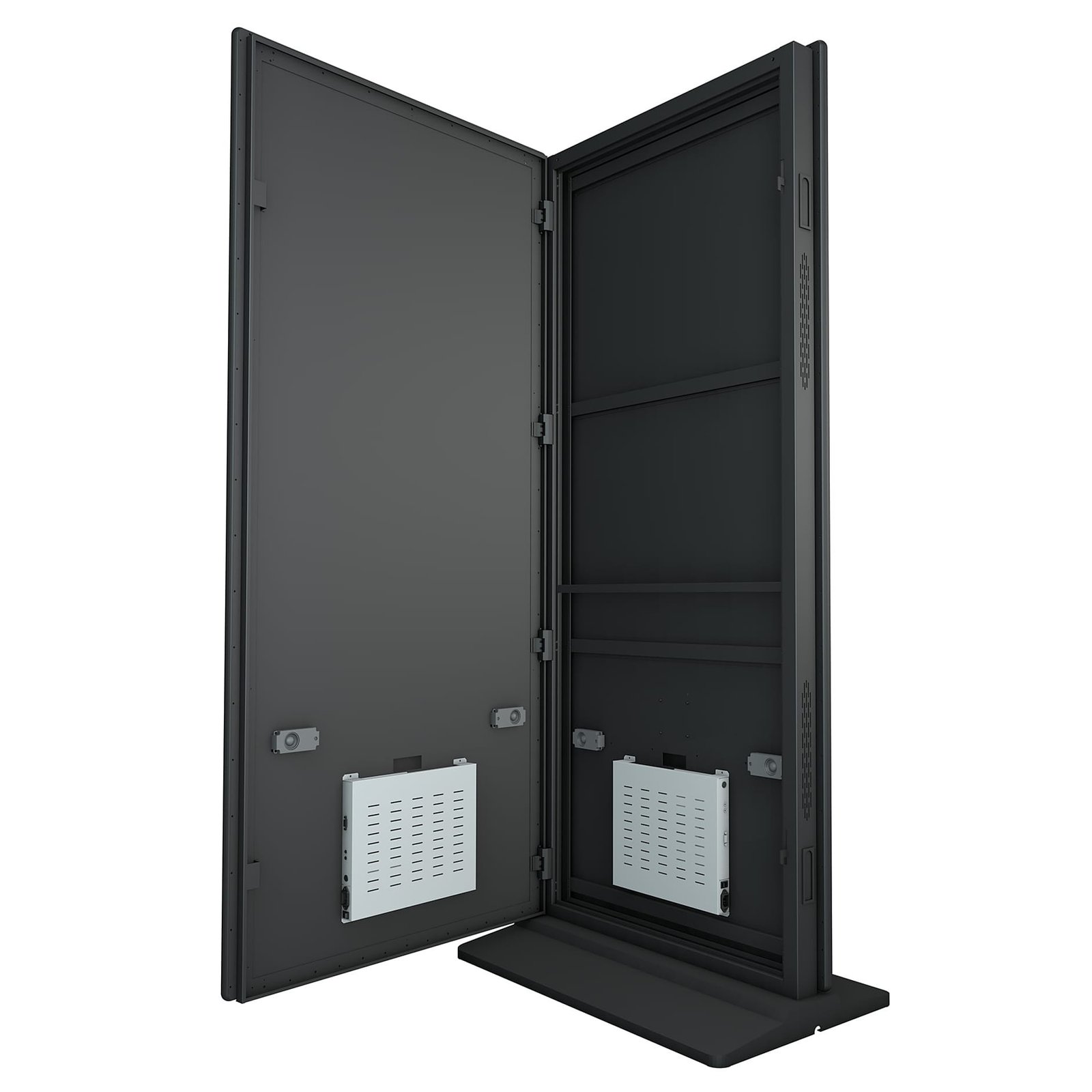

  • Identical or different contents on both screens,Multiple touch screen selection,Open door design for easy

maintenance,Movable screen design is optional.

  • Tempered Glass layer on the surface,Anti-theft Lock,Powerline Through hole.
  • Customized design for you without additional cost,Screen sizes available 43-75inch,free standing(fixed on ground),Security

electric circuit design

  • Anti-dust,high brightness of screen saving energy.
  • Double screen lcd advertising machine vertical smart floor standing kiosk.
  • Slim frame with aluminum alloy edge screen is anti theft foldabel design.
  • View more content for advertising and informactions for dual screen display.
  • Fix floor standing kiosks with large base for installation and good for standing.
  • Advertsing with wifi network android system ,dual system control with remote control
  • Support customization for color, logo printing and design.
  • System can be HDMI in, Android, Windows, Linux, Ubuntu etc.



Advertising Features:

1.Application fields: Can be widely used in hotels, office buildings, the elevator, the exhibition site, entertainment and

leisure facilities, but also in the subway station, train stations, airports, shopping malls, supermarkets, chain stores, specialty

stores, convenience stores, promotional counters and other occasions etc……

2.Outer shell is made of extra good quality of metal material, which is painted by powder-spray craft work.

3.Support shockproof and dust proof function.

4.Adopts high transparent tempered glass as protection layer toprevent lcd/led panel being broken or distorted.

5.Locking system for anti-thieves, prevented the storage devices ( SD/CF cards ) and whole machine from being stolen.

6.Support IR Remote controller, user can use remote controller to operate the whole lcd. ( key buttons is optional )

7.switch on automatically loop playback, support files in mixed,pictures,video,music。

8.support MPEG4(avi: div-x、x-vid)、MPEG2(dvd、vob、MPG2)、MPEG1(vcd、dat、MPG1)、JPEG、MP3 format etc…

9.support OTG copy function,USB file automatically COPY to memory card.

10.automatic power-on/off, rolling caption, time display, playlists, vertica/horizontal screen, time and volume functions

etc…

11.Image playback: rotate, slide show, background music etc…

12.Support 5 groups of auto power-on/off timer, able to set those 5 groups of time 1 day and 7 days in 1week.

13.Automatically generate play logs, file playback status query

14.support the specified file playing in a specific time spot (option)

Products Description:





LCD Screen

Screen size option 43” 49” 55” 65” 75” 75”

Application

Indoor Dual side
Resolution 1920*1080 Screen Ratio 16:9
Dynamic Contrast ≥5000:1 Viewing Angle ≥178º



Brightness 450 cd/m² Life Time 100000h
Brand New A+degree 2K/4K Screen Full-screen Display without black border, no blind spot








Touch Screen



Touch Resolution 4096×4096 Touch Points 10 points
Minimum Touch Item ≥5mm Response Time <5ms
Surface Hardness Hardness

Mohs 7 degree

Cursor Speed ≥180/ms
Transmittance ≥98% Durability Unlimited
≤5mm explosion protection toughened glass for the writing surface, scratch-resistant anticollison
PC Main Board CPU RK3288 for Android i3/i5/i7 Speaker 10W×2
Hard Drive

USB connectors

8G/120G SSD

4 pcs

Memory

Built-in wifi

2G/4G

2.4GHz & 5GHz

IEEE 802.11 a/b/g/n

Interface



HDMI,VGA,USB
Integrated design, modular design for the main panel, detachable, easy for maintain and upgrade
Accessories AC power cable
Operating System WIN7/ WIN8/ WIN10/ Android



Products Description 10-points touch, multiple software
