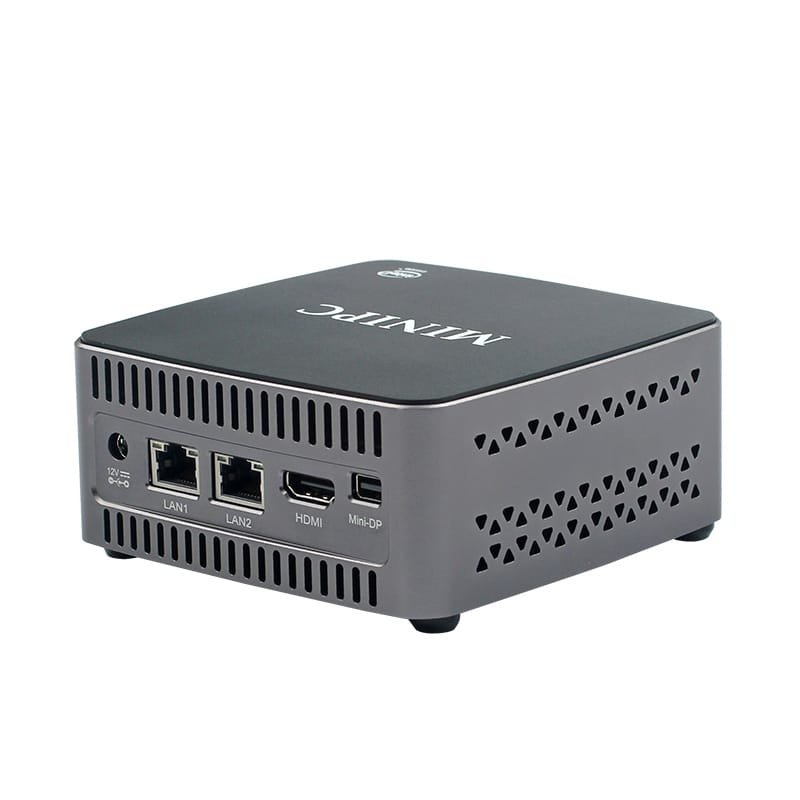

U-BOX-M2

This is a mini computer host.

Quote Now
Category:

Main Features

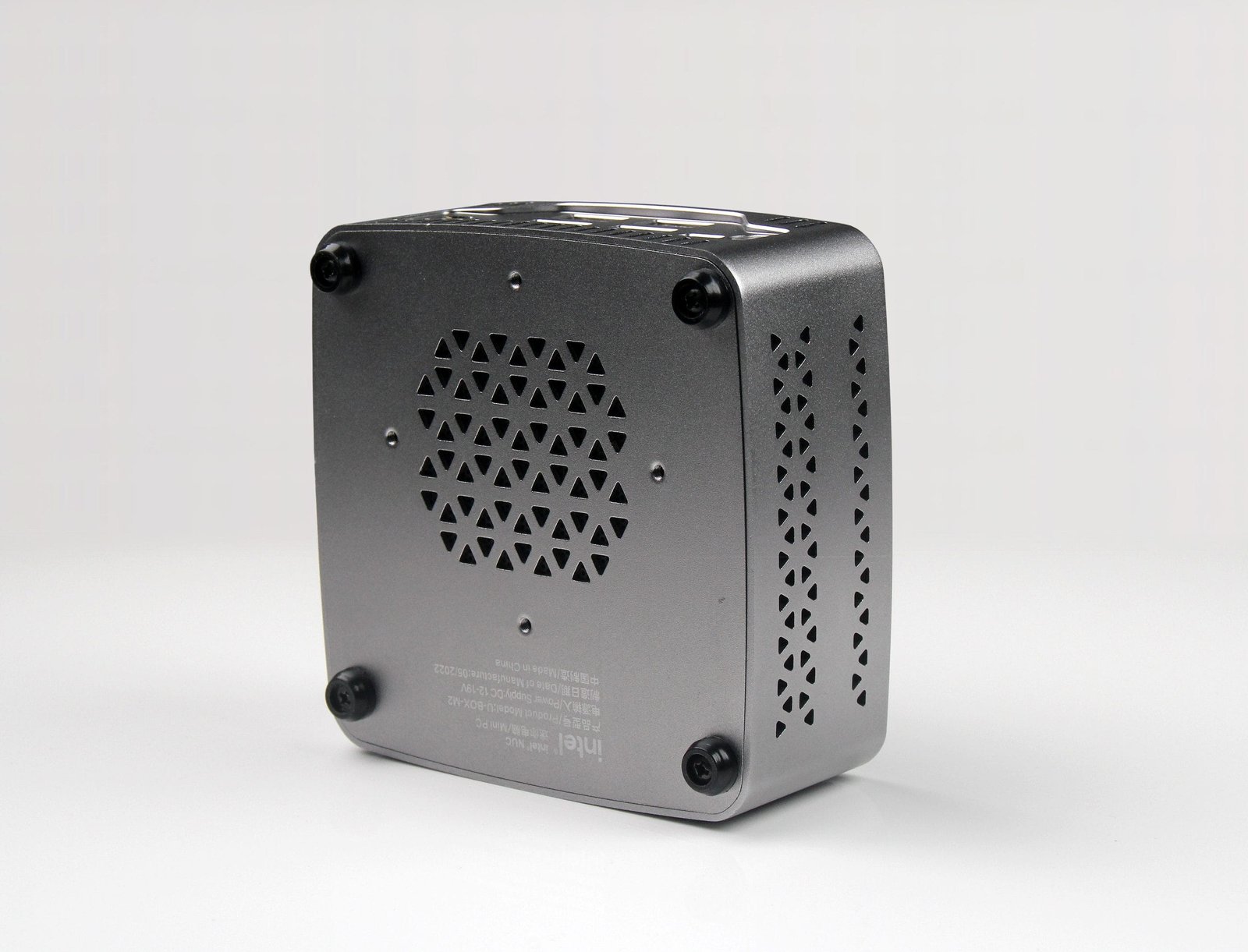

◆ Metal shell, surface oxidation and CNC carving, copper heat sink;

◆ Support Intel Core 8/10/11-U series processors;

◆ 2 memory slots for expansion, the maximum expansion is 64GB;

◆ HDMI2.0/MiniDP display;

◆ 2 2.5G networks, expandable WIFI, built-in antenna;

◆ M.2 2242 NVMe, support 2.5-inch hard drive expansion;

◆ DC12V, 7.5A;

◆ Dimensions: 114.5×114.5×52.8mm

Specification

Model U-BOX-M2
Size NUC:114.5×114.5×52.8mm;Packing:181x153x112mm;External packing:485x380x260mm;12Unit/Carton
Material Aluminum body

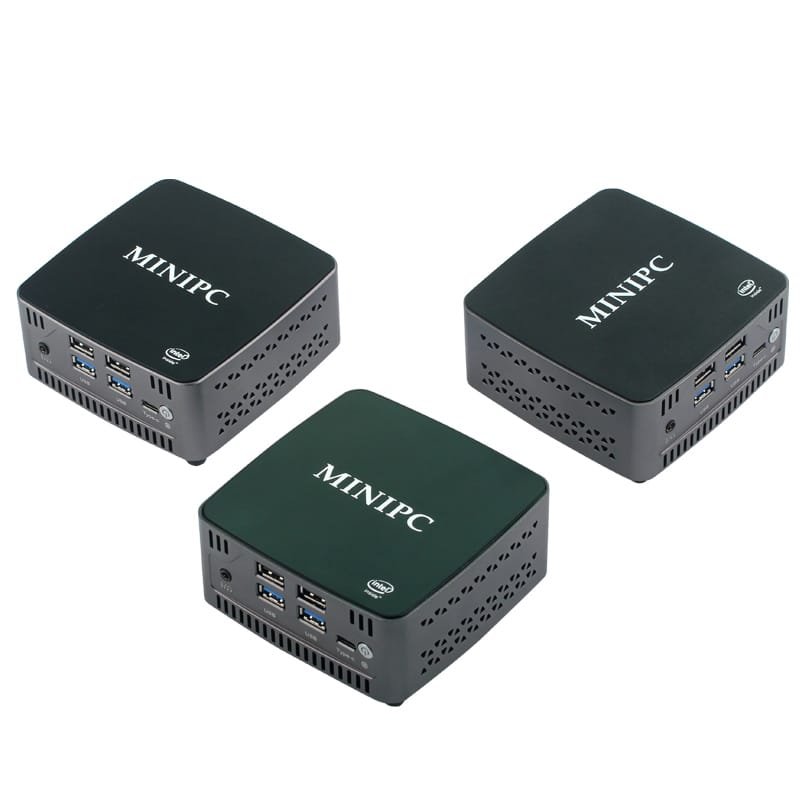

Colour Default iron gray, color can be customized
Processor support Onboard Intel Core 8th Generation Whiskey Lake-U/10th Generation Comet Lake-U/

11th Generation Tiger Lake-U Series Processors

Network card 2x Intel 2.5G LAN
RAM 2x DDR4 SODIMMs, expandable up to 64GB
Storage



1x M.2 2242 (support PCIe x2 NVMe or SATA protocol, choose one of the two)
  1x 2.5-inch SATA3.0 hard drive can be expanded
Other Optional WIFI/BT, 4G module long card, built-in antenna

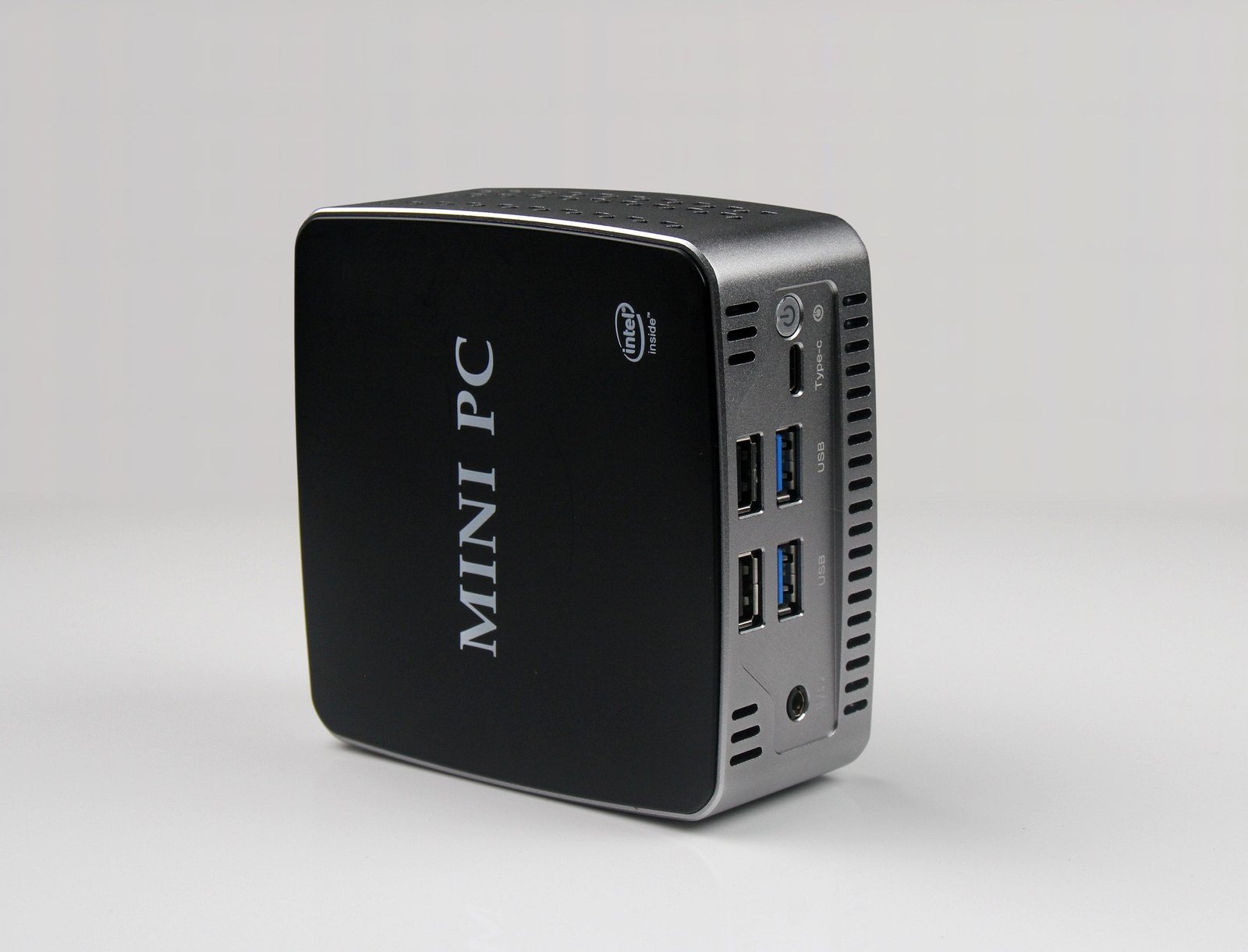

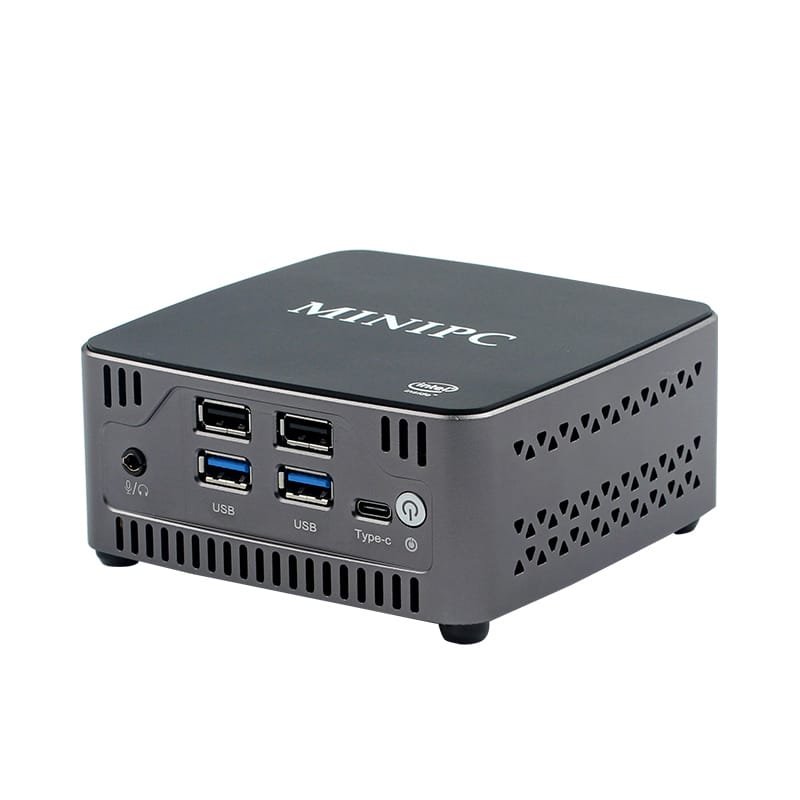

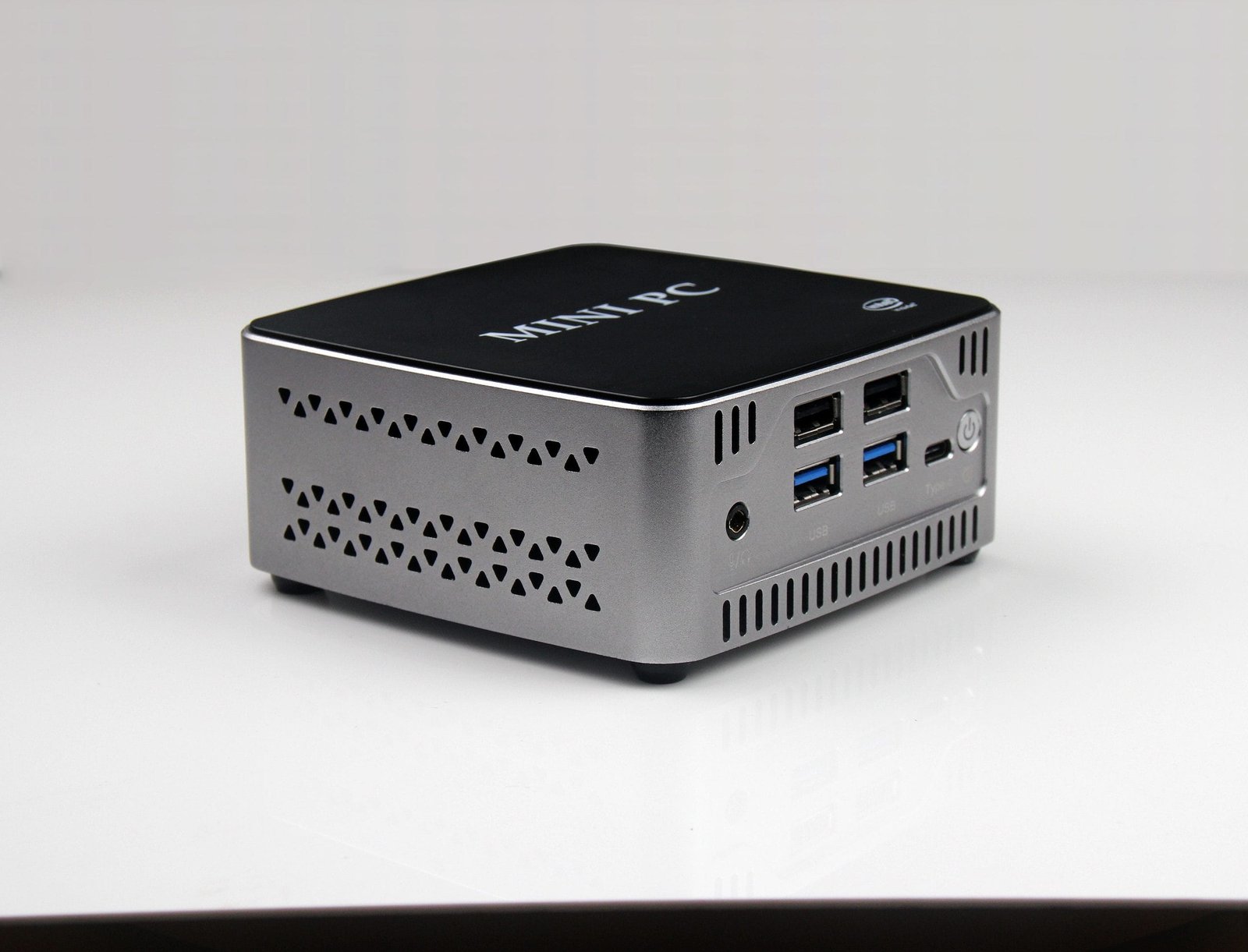

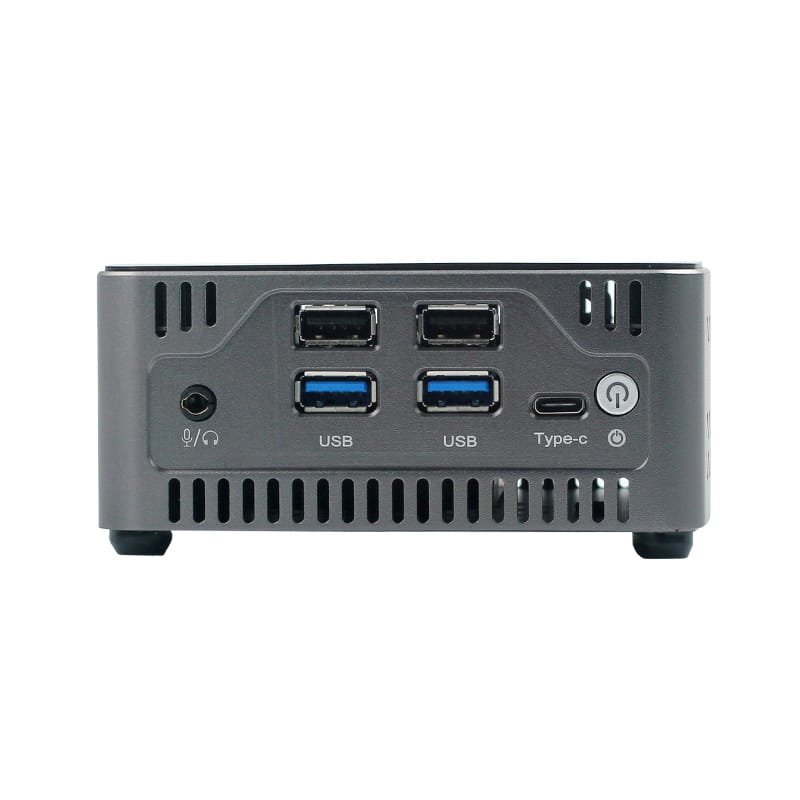

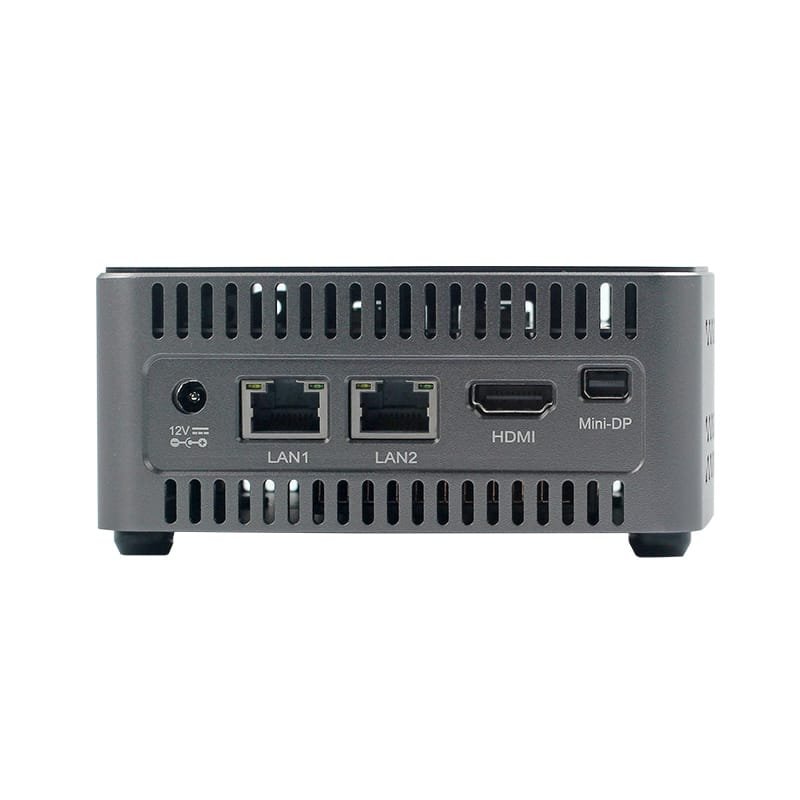

I/O interface













1x switch button

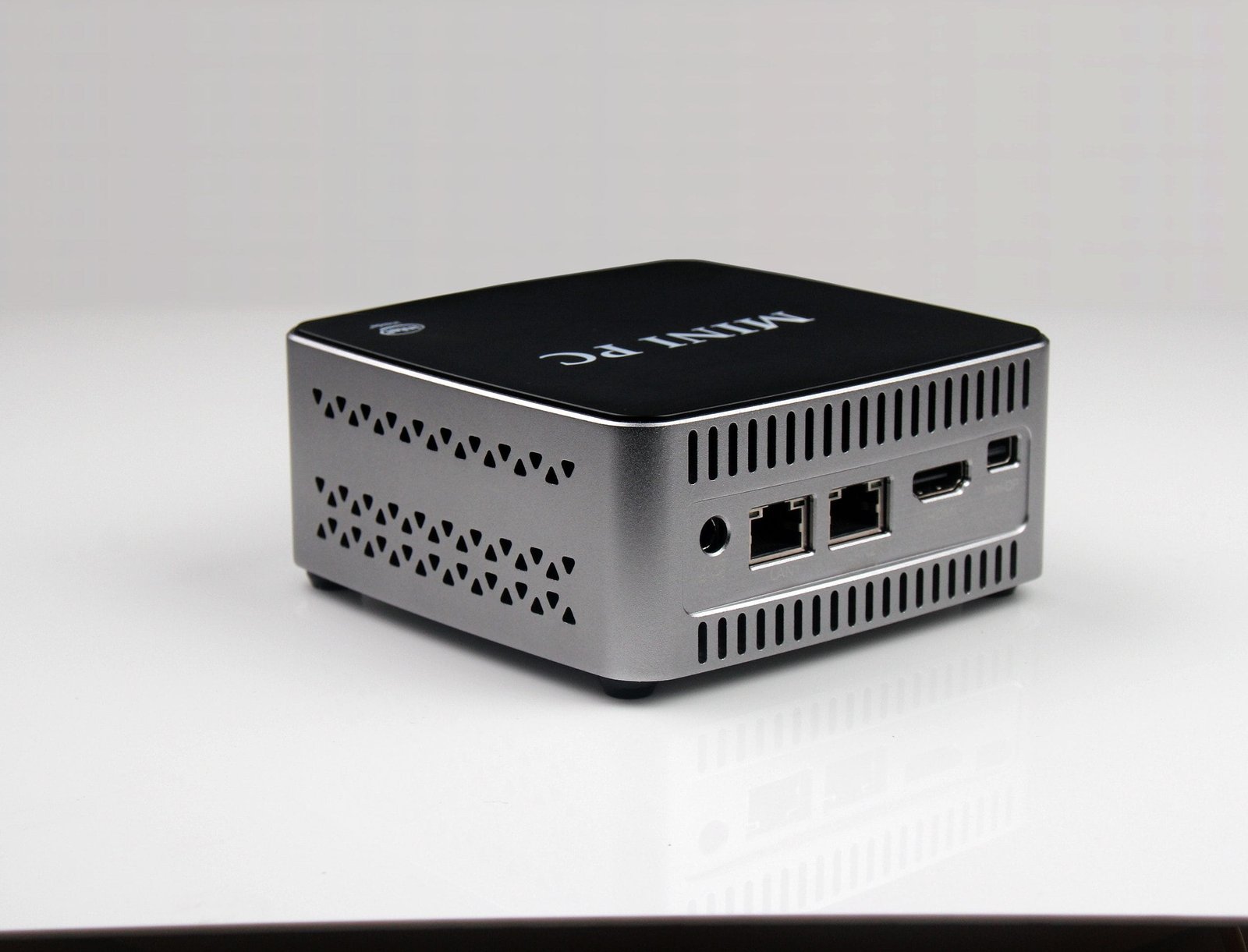

  2x RJ45 ports
  1x HDMI2.0 interface, 1 Mini DP interface, 4K@60HZ display
  1x DC power jack
  1x 2-in-1 audio jack
  2x USB3.1 ports, 2 USB2.0 ports
  1x Type-C interface

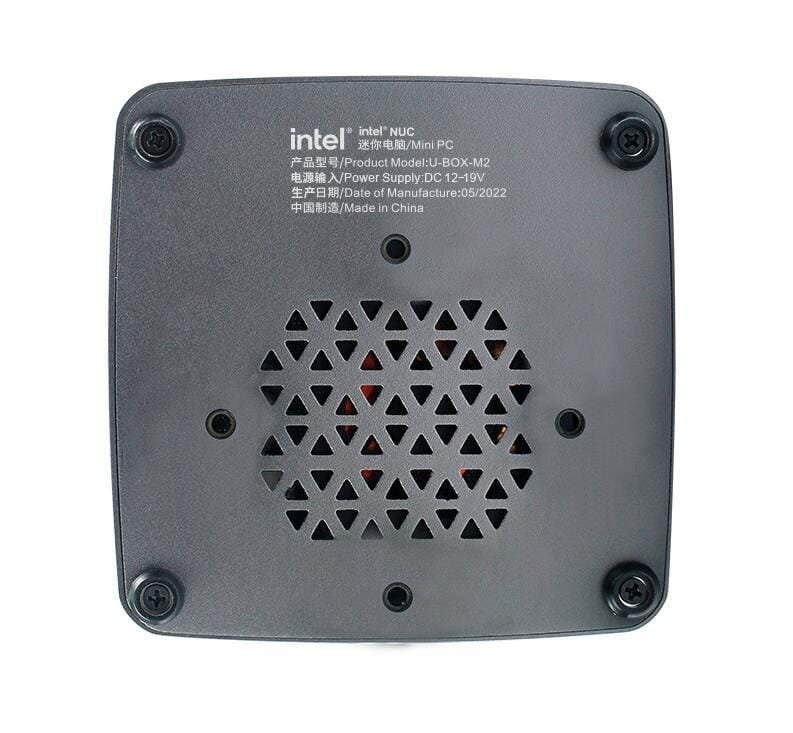

Power supply DC 12V, 7.5A
OS support Windows10, Windows11, Linux, etc.

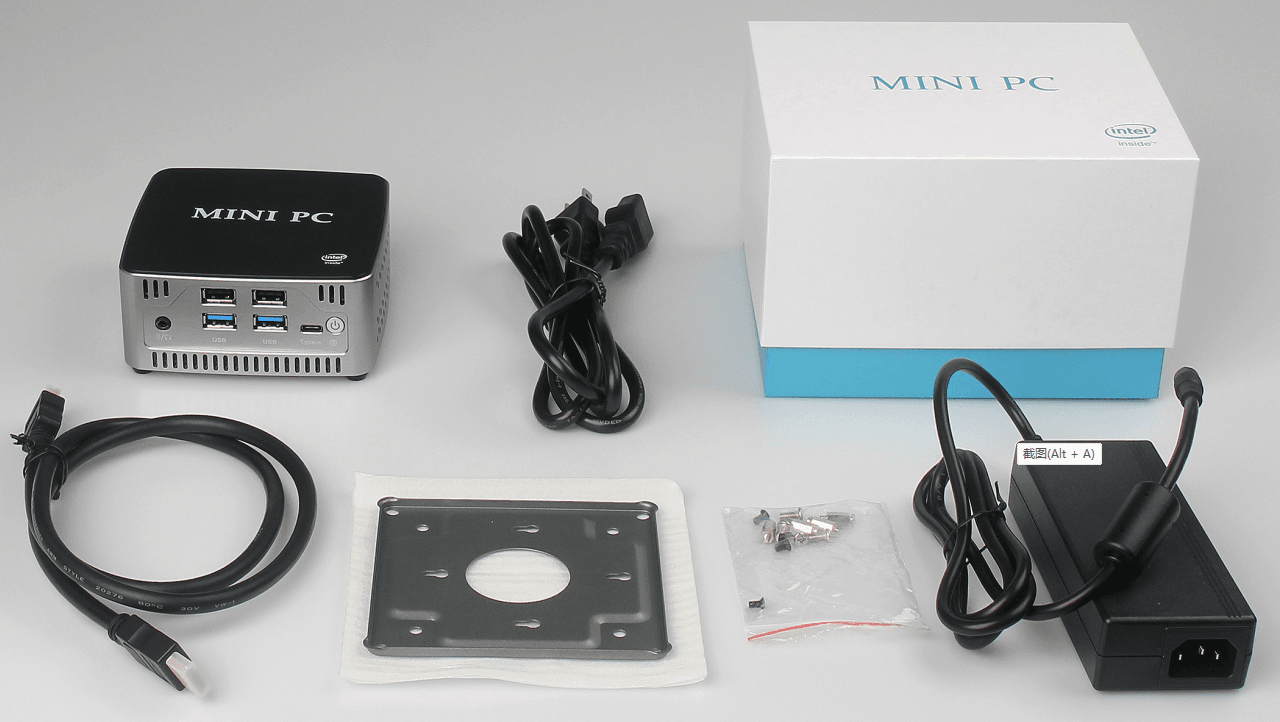

Package Default white box packaging, 181x152x115mm
Weight The net weight of the computer box is 1.2KG (excluding the 2.5-inch hard disk).

The weight including packaging and accessories is 2.3KG (excluding the 2.5-inch hard disk)

Ordering information Celeron i3 i5 i7
Intel Core 8th Whiskey Lake-U Series Processor 4205U i3-8145U i5-8265U i7-8565U
Intel Core 10th Comet Lake-U Series Processor 5205U i3-10110U i5-10210U i7-10510U
Intel Core 11th Tiger Lake-U Series Processor 6305U i3-1115G4 i5-1135G7 i7-1165G7
